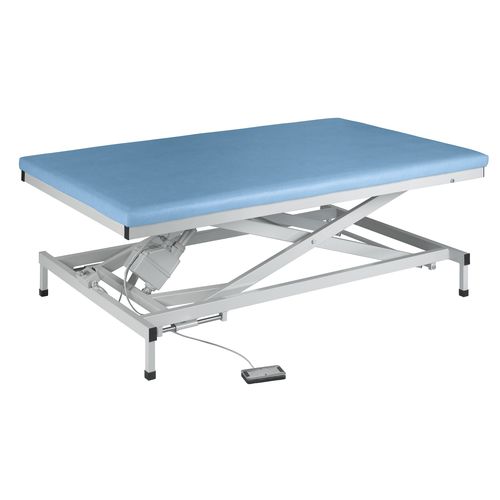

Electric Bobath table H-Bobath series

hydraulicmechanical1-section

Overview
The Bobath gymnastics tables are used in therapeutic and nursing areas to support patients during rehabilitation within the Bobath concept for disorders of the central nervous system. They facilitate treatments for patients with movement disorders, paralysis and spasticity.

Height adjustment variants

• Manual (hand crank) — Article No.: H-Bobath/H 110
• Hydraulics (foot pump) — Article No.: H-Bobath/Y 110, H-Bobath/Y 120, H-Bobath/Y 160
• Electric motor — Article No.: H-Bobath/E 110, H-Bobath/E 120, H-Bobath/E 160

Widths available

• 1,040 mm
• 1,200 mm
• 1,600 mm (has a seam in the middle of the upholstery)

Features

• 200 mm stroke and precision double square profiles to avoid rocking and swinging of the lying surface.
• Scissor adjustment mechanism provides a large adjustment range (420 mm) and low entry height (525 mm).
• Manual height adjustment: hand crank with maintenance-free gear and optimal transmission ratio (i = 10 mm/rev) for smooth operation; crank handle can be stowed under the tabletop.
• Hydraulic height adjustment: operated via built-in foot pump; option to install an additional foot lever for operation from both sides (accessory FPH-10).
• Electric motor height adjustment: controlled via foot switch (alternative hand switch at no extra charge); maintenance-free, very quiet drive; adjustment system equipped with a key lock. Motor connection values: 230 V, 50/60 Hz, 3.7 A, 850 W, IPX4, speed = 11 mm/s, thrust = 10,000 N.
• Stability and robustness achieved by gusset plates in the frame corners.
• 70 mm thick continuous comfort padding with 2-layer foam cuts and a 20 mm wooden support panel on the side; covered with high-quality synthetic leather.

Technical data — Bobath tables with precision double square profiles
Article number: H-Bobath/H 110 | H-Bobath/Y 110 | H-Bobath/E 110
Frame: Lacquered
Length: 1,940 mm
Width: 1,040 mm
Height adjustment: 650 - 850 mm (hand crank / hydraulics / electric motor respectively)
Upholstery segments: 1 section
Upholstery thickness: 70 mm
Load capacity: 200 kg

Technical data — Bobath tables with scissor adjustments
Article number: H-Bobath/Y 120 | H-Bobath/Y 160 | H-Bobath/E 120 | H-Bobath/E 160
Frame: Lacquered
Length: 1,940 mm
Width: 1,200 mm | 1,600 mm | 1,200 mm | 1,600 mm
Height adjustment: 525 – 945 mm (hydraulics for Y models / electric motor for E models)
Upholstery segments: 1 section
Upholstery thickness: 70 mm
Load capacity: 200 kg

Standard configuration includes

• Levelling feet on the chrome-plated crossbars for tables with precision double square profiles.
• Floor protectors (clip-on caps) on the four adjustable feet of the scissor-adjustment tables.

Frame colours (standard)

• Light grey (RAL 7035)
• White aluminium (RAL 9006)
• Pure white (RAL 9010)

Upholstery
The artificial leather covers used are tear-resistant, durable, disinfectant-resistant and easy to clean. Electrically conductive synthetic leather (black) with equipotential bonding socket is available as an option (antistatic version). Other upholstery colours and material options exist as type variants.

Accessories & additional options

• FPH-10 — Foot pedal with transmission shaft and connecting piece (operate hydraulics from both sides).
• HRM-14 — Semi-circular roll, foam filling, Ø 200 x 400 mm, sewn from synthetic leather, with zipper.
• KKM-16 — Head wedge, foam filling, 450 x 400 x 80 / 10 mm (L x W x H), sewn from synthetic leather, with zipper.
• LR/Z-125 — Central locking castor system, double swivel castors Ø 125 mm, connected by rods, diagonal foot pedals for moving/locking (retrofitting not possible).
• RLM-20 / RM-12 — Knee roll Ø 180 x 560 mm; neck roll Ø 140 x 400 mm; round foam rolls sewn from synthetic leather, with zipper.
• LR-125 — Set of castors Ø 125 mm (for table height 650 – 850 mm).
• LR/F-75 — Mobile base on retractable castors Ø 75 mm (example for some variants).
• SG-1000 — Removable side guards (2 pcs.).

Caractéristiques / spécifications techniques

• Series / model family: H-Bobath series
• Overall length: 1,940 mm
• Widths available: 1,040 mm; 1,200 mm; 1,600 mm
• Height adjustment ranges: 650–850 mm (hand crank / hydraulics / electric motor for H-/Y-/E 110 variants); 525–945 mm (scissor-adjustment Y/E 120 and Y/E 160)
• Adjustment stroke (lying surface): 200 mm; scissor adjustment range: up to 420 mm
• Upholstery: continuous one-piece comfort padding, thickness 70 mm, 2-layer foam construction with 20 mm wooden side support
• Upholstery segments: 1 section
• Load capacity: 200 kg
• Manual transmission ratio: i = 10 mm/rev
• Electric drive: 230 V, 50/60 Hz, 3.7 A, 850 W, IPX4, speed ≈ 11 mm/s, thrust ≈ 10,000 N
• Frame finish: lacqu ered (standard RAL colours), gusset plates in frame corners for robustness
