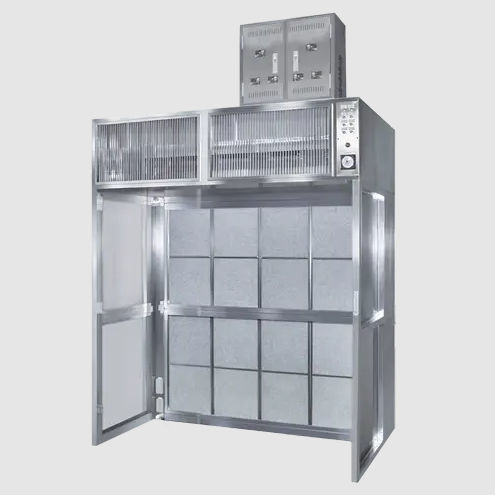

Exhaust enclosure AMR-2100S

for powder weighingcontainmentweighing

Product use
In pharmaceutical plants where large quantities of chemicals and active ingredients are handled, measures to prevent dispersion of drug dust are required. Purifying air containing dust using HEPA filtration effectively improves the working environment.

Key points of the product

• Suction airflow effectively removes dust from inside the booth.
• Dust is captured and purified by the HEPA main filter.
• Filter replacement can be performed using wet-down or bag-in/bag-out methods.

Specifications
AMR-2100S
Model: AMR-2100S
Collection efficiency: ≥99.99% for 0.3 μm particles (PAO) — scan-tested item
Main filter: HEPA filter
Pre-filter: non-woven fabric filter
Airflow: approx. 60–87 m³/min
Face velocity: approx. 0.35–0.5 m/s (at pre-filter front)
Power supply: AC200V 3φ 50/60Hz, AC100V 1φ 50/60Hz
Installed power: AC200V: approx. 25 KVA, AC100V: approx. 4 KVA (including outlet capacity)
Lighting: 32W × 2
Weight: approx. 750 kg
Construction: Body: stainless steel hairline finish
Side panels: antistatic polycarbonate

ACD-1800S1
Model: ACD-1800S1
Collection efficiency: ≥99.99% for 0.3 μm particles (PAO) — scan-tested item
Main filter: HEPA filter
Pre-filter: non-woven fabric filter
Airflow: approx. 15.5–22 m³/min
Face velocity: approx. 0.35–0.5 m/s (at pre-filter front)
Power supply: AC100V 1φ 50/60Hz
Installed power: approx. 500 VA
Lighting: 32W × 2
Weight: approx. 550 kg
Construction: Body: SUS304
Side panels: tempered processed glass t3

Features / Key specifications

• Intended use: prevention of drug-dust dispersion in pharmaceutical plants; air purification with HEPA filters.
• Primary dust collection method: suction airflow with HEPA main filter plus non-woven pre-filter.
• Collection efficiency (both models): ≥99.99% for 0.3 μm particles (scan-tested item).
• Airflow: AMR-2100S approx. 60–87 m³/min; ACD-1800S1 approx. 15.5–22 m³/min.
• Face velocity (pre-filter front): approx. 0.35–0.5 m/s.
• Power supply: AMR-2100S supports AC200V 3φ / AC100V 1φ; ACD-1800S1 supports AC100V 1φ.
• Installed power: AMR-2100S approx. 25 KVA (AC200V); ACD-1800S1 approx. 500 VA.
• Lighting: 32W × 2.
• Weight: AMR-2100S approx. 750 kg; ACD-1800S1 approx. 550 kg.
• Body material: stainless steel (hairline) or SUS304; side panels: antistatic polycarbonate or tempered processed glass.
