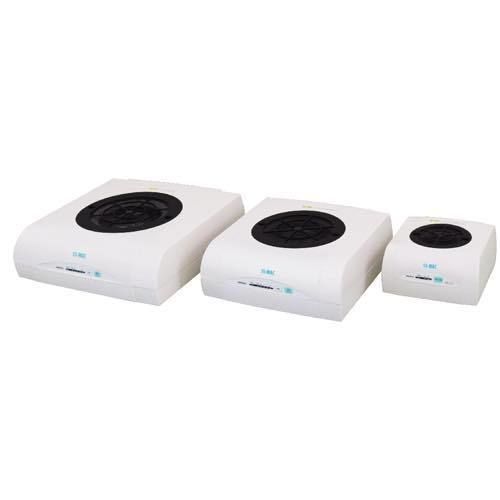

HEPA filtration unit SS-MAC

airfor clean roomsABS

Product application
Compact multi-purpose clean unit functioning as an FFU (Fan Filter Unit). Suitable for a wide range of applications: plug in power and it supplies purified air. The housing is made of anti-static plastic to reduce dust adhesion. Lightweight, easy to install and maintain, with an aesthetic design.

What is an FFU?
An FFU (Fan Filter Unit) integrates a high-efficiency HEPA filter and a blower in a single clean air module. FFUs are used to ensure cleanliness in cleanrooms, clean booths and semiconductor manufacturing equipment. Installation methods include floor mounting, wall mounting and ceiling suspension depending on site conditions. Our compact lightweight FFU types (SS-MAC, EC-MAC, etc.) are widely used in modern cleanrooms.

Key product points

• Housing made of anti-static resin.
• DC brushless motor reduces power consumption.
• Available series with nominal airflow options: 1, 3, 5, 10 m³/min.
• Airflow adjustable by a selector switch (except MAC-103).
• Power supply: AC 100–240V or DC 24V (MAC-103 is AC 100V only).
• LED operation indicator on the discharge face (except MAC-103).
• Optional ULPA filter version for higher cleanliness.
• RoHS directive compliant.

Specifications (MAC-15)
Model: MAC-15
Collection efficiency: ≥99.99% at 0.3 μm
Filter elements: Main filter: HEPA filter / Pre-filter: saran net processed material
Treated airflow (m³/min): 2-step (1.0 / 0.5)
Discharge air velocity (m/s): 2-step (0.48 / 0.24)
Power supply: AC 100–240V 1φ 50/60Hz or DC 24V
Power consumption (W): 2-step (13 / 6)
Noise (dBA): 2-step (52 / 43)
Weight: approx. 2.5 kg
Construction: anti-static ABS resin
Accessories: mounting gasket ×1, fixing screws ×4

Specifications (MAC-35)
Model: MAC-35
Collection efficiency: ≥99.99% at 0.3 μm
Filter elements: Main filter: HEPA filter / Pre-filter: saran net processed material
Treated airflow (m³/min): 5-step (3.4 / 3.0 / 2.5 / 2.0 / 1.0)
Discharge air velocity (m/s): 5-step (0.52 / 0.46 / 0.38 / 0.31 / 0.15)
Power supply: AC 100–240V 1φ 50/60Hz or DC 24V
Power consumption (W): 5-step (41 / 32 / 26 / 20 / 10)
Noise (dBA): 5-step (57 / 55 / 52 / 49 / 38)
Weight: approx. 6.5 kg
Construction: anti-static ABS resin
Accessories: mounting gasket ×1, fixing screws ×4

Specifications (MAC-55)
Model: MAC-55
Collection efficiency: ≥99.99% at 0.3 μm
Filter elements: Main filter: HEPA filter / Pre-filter: saran net processed material
Treated airflow (m³/min): 5-step (5.3 / 4.5 / 3.3 / 2.2 / 1.1)
Discharge air velocity (m/s): 5-step (0.46 / 0.39 / 0.29 / 0.19 / 0.10)
Power supply: AC 100–240V 1φ 50/60Hz or DC 24V
Power consumption (W): 5-step (48 / 35 / 23 / 15 / 8)
Noise (dBA): 5-step (55 / 52 / 47 / 41 / 33)
Weight: approx. 10 kg
Construction: anti-static ABS resin
Accessories: mounting gasket ×1, fixing screws ×4

Dimensions (see related images)
Dimension and outline drawings are available for each model (see images).

Features / Specifications (summary)

• Model: SS-MAC series — compact multi-purpose FFU.
• Housing material: anti-static ABS resin.
• Filters: Main HEPA filter and pre-filter (saran net processed).
• Collection efficiency: ≥99.99% at 0.3 μm.
• Airflow settings: 2–5 step adjustable depending on model.
• Power: AC 100–240V or DC 24V (some models AC 100V only).
• Drive: DC brushless motor for reduced power consumption.
• Indicator: LED operation indicator on the discharge face (not on all models).
• Options: ULPA filter version available for higher cleanliness.
• Accessories: mounting gasket ×1, fixing screws ×4 (common to each model).
