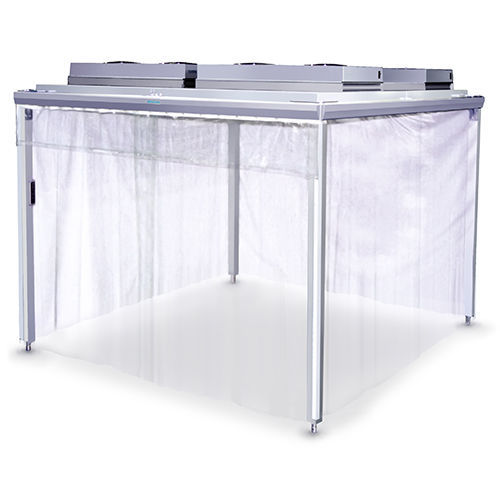

Medical clean room MCB

largealuminum frameISO class 7

Application
Provides a cost-effective clean environment tailored to installation and operations. The MCB series is a clean booth constructed with an aluminum frame. Aluminum provides structural strength and an aesthetic finish and enables short lead times. Units can be custom-fabricated to fit the installation to maximize usable space; large and special designs are available. The MCB06 series can be equipped with energy-saving clean units and supports automatic airflow control according to required cleanliness.

Key product features

• Supports a wide range of cleanliness levels to match purpose and environment, e.g. ISO5 (Class 100), ISO6 (Class 1,000), ISO7 (Class 10,000)
• Columns and beams made from aluminum frame
• Short lead times achieved by standardization and stock of main components
• Custom fabrication available for width, depth and height
• Surroundings use clear antistatic vinyl curtain (other materials available as options)
• Various entrance options: vinyl curtain (wrap-type, rail-type), aluminum doors, air showers, etc.

Standards and specifications
MCB06-262820A5 (full laminar flow)
Model: MCB06-262820A5 (full laminar flow)
Cleanliness: ISO5 (Class 100)
Collection efficiency: ≥99.99% at 0.3 μm particles
Filter elements: Main filter: HEPA filter
Pre-filter: saran net treated product
Airflow: approx. 120 m³/min
Recirculation rate: approx. 470 times/hour
Lighting: LED lighting ×6
Power: AC100V 1Φ 50/60Hz
Installed power: approx. 1100 VA
Weight: approx. 350 kg
Construction: Filter unit: SUS430 BA plate
Surroundings: antistatic vinyl curtain
Frame: extruded aluminum with anodized finish

MCB06-303020D5 (diffused laminar flow)
Model: MCB06-303020D5 (diffused laminar flow)
Cleanliness: ISO5 (Class 100)
Collection efficiency: ≥99.99% at 0.3 μm particles
Filter elements: Main filter: HEPA filter
Pre-filter: saran net treated product
Airflow: approx. 88 m³/min
Recirculation rate: approx. 293 times/hour
Lighting: LED lighting ×4
Power: AC100V 1Φ 50/60Hz
Installed power: approx. 1200 VA
Weight: approx. 420 kg
Construction: Filter unit: SUS430 BA plate
Surroundings: antistatic vinyl curtain
Frame: extruded aluminum with anodized finish
Ceiling: aluminum decorative panel
Punching: steel plate with baked finish

MCB06-303020T6 (turbulent flow)
Model: MCB06-303020T6 (turbulent flow)
Cleanliness: ISO6 (Class 1,000)
Collection efficiency: ≥99.99% at 0.3 μm particles
Filter elements: Main filter: HEPA filter
Pre-filter: saran net treated product
Airflow: approx. 25 m³/min
Recirculation rate: approx. 83 times/hour
Lighting: LED lighting ×6
Power: AC100V 1Φ 50/60Hz
Installed power: approx. 450 VA
Weight: approx. 260 kg
Construction: Filter unit: SUS430 BA plate
Frame: extruded aluminum with anodized finish
Ceiling: aluminum decorative panel
Surroundings: antistatic vinyl curtain

MCB06-303020T7 (turbulent flow)
Model: MCB06-303020T7 (turbulent flow)
Cleanliness: ISO7 (Class 10,000)
Collection efficiency: ≥99.99% at 0.3 μm particles
Filter elements: Main filter: HEPA filter
Pre-filter: saran net treated product
Airflow: approx. 15 m³/min
Recirculation rate: approx. 50 times/hour
Lighting: LED lighting ×4
Power: AC100V 1Φ 50/60Hz
Installed power: approx. 250 VA
Weight: approx. 260 kg
Construction: Filter unit: SUS430 BA plate
Frame: extruded aluminum with anodized finish
Ceiling: aluminum decorative panel
Surroundings: antistatic vinyl curtain

Summary technical features

• Supported cleanliness: ISO5 (Class 100) to ISO7 (Class 10,000) depending on model
• Collection efficiency: ≥99.99% at 0.3 μm particles (all models)
• Filter elements: Main = HEPA, Pre-filter = saran net treated product
• Airflow range: approx. 15–120 m³/min depending on model
• Recirculation rate: approx. 50–470 times/hour depending on model
• Lighting: LED (4 or 6 units depending on model)
• Power supply: AC100V 1Φ 50/60Hz
• Installed power: approx. 250–1200 VA depending on model
• Construction materials: Filter unit = SUS430 BA plate; Frame = extruded anodized aluminum; Surroundings = antistatic vinyl curtain
• Design options: custom width, depth, height; large and special designs available
• Entrance options: vinyl curtains (wrap-type/rail-type), aluminum doors, air showers, etc.
