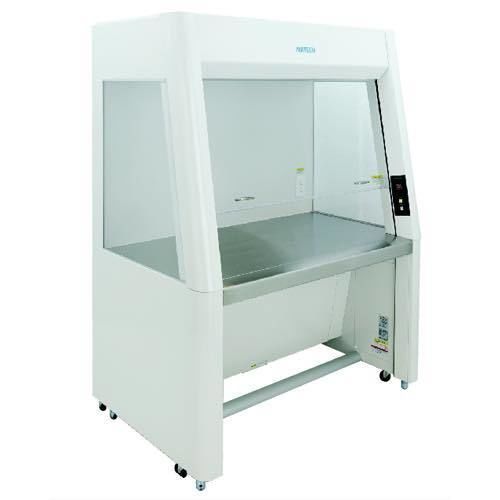

Laboratory clean bench VS series

for research laboratoriesfor clean roomsHEPA

Application
This is a standard vertical-airflow clean bench (VS series) designed for controlled environments and laboratory use. It features an inclined sliding shutter for improved operability, a DC brushless motor for reduced power consumption, and a variety of optional accessories such as gas sterilization lamps.

Key product points

• Inclined sliding shutter improves operator access and ergonomics.
• DC brushless motor provides energy-efficient operation.
• Available widths: 1,000 / 1,300 / 1,600 / 1,900 mm.
• Digital air velocity display indicates operating status.
• Gas sterilization lamp and other accessories available as options.

Standards & specifications
Model: VS-1006 / VS-1306 / VS-1606 / VS-1916
Cleanliness: ISO-5 (Class 100)
Collection efficiency: 99.99% or higher for 0.3 μm particles
Filtration elements: Main filter: HEPA filter / Pre-filter: non-woven fabric filter
Airflow (m³/min): approx. 10.3 / 13.8 / 17.3 / 20.8
Outlet air velocity (m/sec): approx. 0.45
Power supply: AC100V 1Φ 50/60Hz
Power consumption (W): approx. 220 / 250 / 280 / 350
Installed power (VA): approx. 370 / 420 / 460 / 570
Blower: DCBL turbo fan (1 unit)
Lighting: Inverter twin fluorescent 36W×2 (VS-1006, VS-1306, VS-1606) / 36W×3 (VS-1916)
Weight (kg): approx. 170 / 190 / 230 / 270
Construction: Body: painted steel plate / Worktop: SUS304 hairline finish / Front shutter: transparent tempered glass t5 / Shutter cover: extruded aluminum painted

Main features / specifications

• Model: VS-1006 / VS-1306 / VS-1606 / VS-1916
• Cleanliness: ISO-5 (Class 100)
• Collection efficiency: ≥99.99% at 0.3 μm
• Main filter: HEPA filter
• Pre-filter: non-woven fabric filter
• Airflow (m³/min): approx. 10.3 / 13.8 / 17.3 / 20.8
• Air velocity: approx. 0.45 m/sec
• Power supply: AC100V 1Φ 50/60Hz
• Power consumption: approx. 220 / 250 / 280 / 350 W
• Installed power: approx. 370 / 420 / 460 / 570 VA
• Blower: DCBL turbo fan (1 unit)
• Lighting: Inverter twin fluorescent (36W×2 or 36W×3)
• Weight: approx. 170–270 kg (varies by model)
• Construction: Body painted steel, worktop SUS304 hairline, front shutter transparent tempered glass t5
