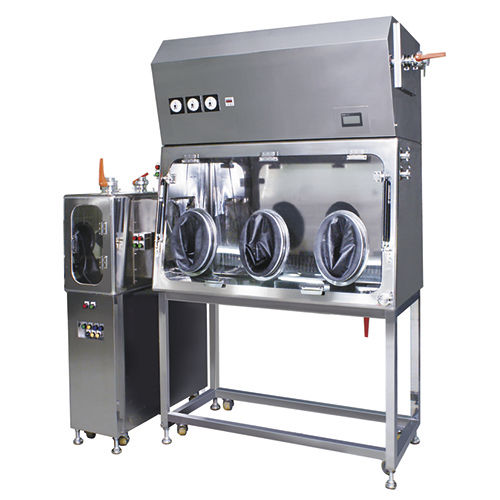

Sterile isolator

asepticcontainmentfor pharmaceutical laboratories

Intended use
An aseptic isolator designed for sterile processing and aseptic testing. High airtightness creates a localized sterile zone isolated from the ambient environment. The main chamber is maintained at Grade A (ISO Class 5) by laminar flow. The inclined front door reduces the sense of confinement and improves visibility during gloved operations. The unit is designed and manufactured with operator comfort for prolonged use in mind.

Key features

• Main chamber maintained at Grade A (ISO Class 5) by laminar flow.
• Inflatable door seal for improved airtightness.
• Compatible with integrated hydrogen peroxide (H2O2) decontamination systems.
• Custom design and manufacture to suit installation environment.
• Also available as a containment (negative‑pressure) isolator.

Technical specifications

• Cleanliness: main chamber ISO Class 5 (Class 100); transfer/auxiliary chamber per site conditions.
• Particle collection efficiency: ≥99.99% at 0.3 µm (PAO).
• Filter: HEPA filter (with test certification).
• Airflow rate: approx. 18.6 m³/min.
• Discharge air velocity: approx. 0.45 m/sec.
• Internal pressure: slight positive (negative‑pressure/containment option available).
• Lighting: LED.
• Power supply: AC 200V, 1Ø, 50Hz.
• Installed power: isolator approx. 1500 VA (excluding decontamination unit).
• Construction: main chamber stainless steel #400 finish; transfer chamber stainless steel #400 finish; front and side doors: transparent polycarbonate; gloves: black chloroprene.
