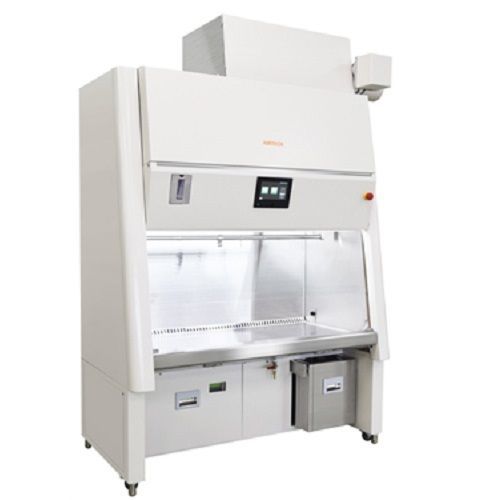

Type A2 microbiological safety cabinet PSC-1307ⅡA2

for the pharmaceutical industryfor pharmaceutical laboratoriesfor cytotoxics

Intended use
Ozone-enabled safety cabinet designed to decompose antineoplastic agents during pharmaceutical preparation. Protects healthcare personnel from exposure during high-risk drug handling. Can also be used as a biological safety cabinet for containment work.

Key product points

• Lower cost alternative to an isolator while retaining familiar manual workflow and preparation speed.
• Class II A2, partial recirculating cabinet easier to install than total exhaust systems.
• Canopy-type exhaust provides stable extraction with lower airflow than fully ducted exhaust connections.
• Optional IoT remote monitoring for operation and decontamination status.
• Motorized shutter reduces cross-contamination via handles.
• Compatible with ozone-water cleaning (requires water supply/drain connections).
• Adsorbent filters for volatile cytotoxic capture reduce external emissions.

Standards & specifications
Model: PSC-1307ⅡA2 (partial recirculating)
Capture efficiency: ≥99.99% for 0.3 μm particles (PAO)
Filtration elements: Supply/exhaust HEPA filters (scan-tested)
Supply airflow: approx. 12.1 m3/min
Exhaust airflow: approx. 8.6 m3/min
In-cabinet airflow: approx. 0.28 m/s
Face velocity: approx. 0.55 m/s
Power: AC100V, 1φ, 50/60Hz
Power consumption: approx. 350W (≈500VA) for fan + lighting (socket capacity not included)
Construction: Body and work chamber—stainless steel
Front cover and side panels—painted steel sheet
Motorized valve—stainless steel
Weight: approx. 420 kg
Alarms: fan failure, in-cabinet or intake airflow anomalies, ozone gas leak, etc.
Accessories/options: motorized shutter, ozone-water sink, adsorbent filter, IoT remote monitoring (optional)

Ozone generator
Ozone generation rate: approx. 5 g/h
Ozone concentration: approx. 20.8–41.6 g/m3
Power: AC100V, 1φ, 50/60Hz
Power consumption: approx. 250W (≈400VA)
Alarms: in-chamber ozone concentration measurement during decontamination (UV absorption 0–500 ppm), external ozone monitoring included

Features / Technical data

• Model: PSC-1307ⅡA2 (partial recirculating)
• Capture efficiency: ≥99.99% at 0.3 μm (PAO)
• Supply airflow: approx. 12.1 m3/min
• Exhaust airflow: approx. 8.6 m3/min
• In-cabinet airflow: approx. 0.28 m/s
• Face velocity: approx. 0.55 m/s
• Power: AC100V 1φ 50/60Hz (main unit and ozone generator)
• Power consumption: main approx. 350W (fan + lighting), ozone unit approx. 250W
• Construction: stainless steel body and work chamber; painted steel front cover and side panels; stainless motorized valve
• Weight: approx. 420 kg
• Alarm functions: fan failure, airflow anomalies, ozone leak, decontamination ozone concentration monitoring (UV absorption), etc.
• Accessories/Options: motorized shutter, ozone-water sink, adsorbent filter, IoT remote monitoring (optional)
