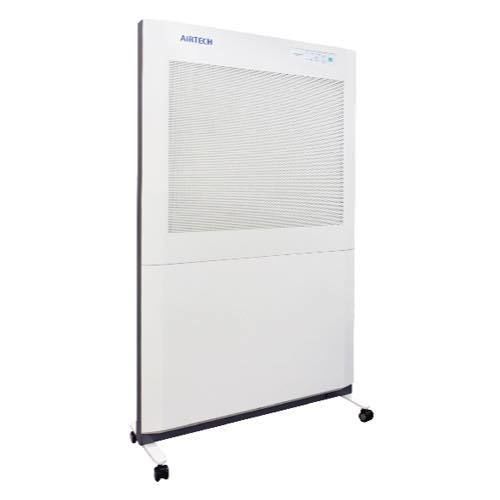

Vertical air purifier ACP-898 series

compactwith HEPA filterfor healthcare facilities

Intended use
The clean partition is designed for installation in examination or consultation rooms to protect healthcare personnel and to purify contaminated indoor air. Positioning partitions facing each other with opposing discharge directions creates a unidirectional airflow.

Push airflow
Model: ACP-898AH (clean-air supply type). The push airflow supplies sterile air purified by a HEPA filter.

Pull airflow
Model: ACP-898CH (contaminant-removal type). The pull exhaust draws in contaminated air, purifies it through a HEPA filter and discharges it.

Key product points

• Ultra-thin clean unit for space-efficient installation.
• Available in clean-air supply (AH) and contaminant-removal (CH) configurations.
• Equipped with a DC brushless motor for reduced power consumption.
• Five-step airflow adjustment.

Specifications (ACP-898AH)
Model: ACP-898AH (clean-air supply)
Collection efficiency: ≥99.99% for 0.3 μm particles
Filtration elements: Main filter: HEPA filter; Pre-filter: processed saran net
Power supply: AC100V 1φ 50/60Hz
Weight: approx. 40 Kg
Construction: painted steel plate finish
Airflow settings: High / Strong / ・ / Weak / Silent (5 steps)
Processed air volume (m³/min): approx. 12.5 / 6.5 / 5.0 / 4.0 / 3.0
Air velocity (m/s): approx. 0.50 / 0.26 / 0.20 / 0.16 / 0.12
Noise (dBA): approx. 58 / 45 / 43 / 40 / 36
Power consumption (W): approx. 100 / 30 / 25 / 20 / 15
Installed power: approx. 150 VA

Specifications (ACP-898CH)
Model: ACP-898CH (contaminant-removal)
Collection efficiency: ≥99.99% for 0.3 μm particles
Filtration elements: Main filter: HEPA filter; Pre-filter: processed saran net
Power supply: AC100V 1φ 50/60Hz
Weight: approx. 43 Kg
Construction: painted steel plate finish
Airflow settings: High / Strong / ・ / Weak / Silent (5 steps)
Processed air volume (m³/min): approx. 11.5 / 6.5 / 5.0 / 4.0 / 3.0
Discharge air velocity (m/s): approx. 0.46 / 0.26 / 0.20 / 0.16 / 0.12
Noise (dBA): approx. 58 / 45 / 43 / 40 / 36
Power consumption (W): approx. 100 / 30 / 25 / 20 / 15
Installed power: approx. 150 VA

Features / Technical specifications

• Models: ACP-898AH (clean-air supply), ACP-898CH (contaminant-removal).
• Collection efficiency: ≥99.99% for 0.3 μm particles.
• Filters: Main HEPA filter; Pre-filter: processed saran net.
• Power supply: AC100V 1φ 50/60Hz.
• Weight: approx. 40 Kg (AH) / approx. 43 Kg (CH).
• Construction: painted steel plate finish.
• Airflow settings: High / Strong / ・ / Weak / Silent (5 steps).
• Processed air volume: AH approx. 12.5 / 6.5 / 5.0 / 4.0 / 3.0 m³/min; CH approx. 11.5 / 6.5 / 5.0 / 4.0 / 3.0 m³/min.
• Air velocity: AH approx. 0.50 / 0.26 / 0.20 / 0.16 / 0.12 m/s; CH approx. 0.46 / 0.26 / 0.20 / 0.16 / 0.12 m/s.
• Noise: approx. 58 / 45 / 43 / 40 / 36 dBA (varies with airflow).
• Power consumption: approx. 100 / 30 / 25 / 20 / 15 W; installed power approx. 150 VA.
