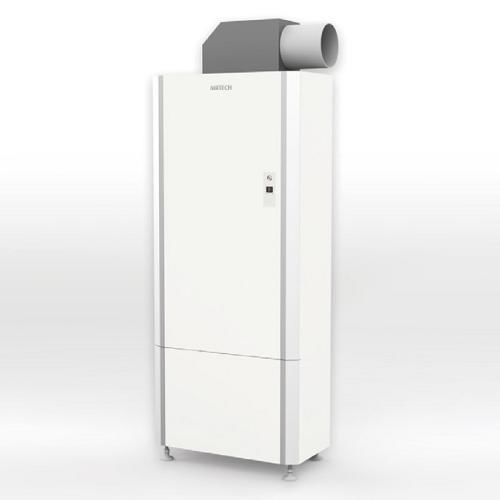

Air purification system with HEPA filter PEU-02型

for ductpatient roomfor healthcare facilities

Application
This unit is designed to be installed in existing patient rooms and similar spaces to provide air cleaning and room negative pressure in a single device. (Ductwork is required to establish room negative pressure.)
Air drawn in from the lower intake is purified by a HEPA filter and delivered as clean air through the supply and exhaust outlets.
Exhausting air outdoors via ductwork enables creation of negative pressure in the room, while the supply outlet delivers HEPA-cleaned air into the space for air purification.

Key points

• Performs room air cleaning and negative-pressure control in one unit (ductwork required).
• Both supply to the room and exhaust to outdoors use HEPA-filtered air.

Specifications
Model: PEU02-20
Collection efficiency: ≥99.99% for 0.3 μm particles
Filter elements: Main filter: HEPA filter
Pre-filter: non-woven fabric filter
Supply air volume: 50Hz: High ≈12 m³/min, Low ≈8 m³/min
60Hz: High ≈13 m³/min, Low ≈7 m³/min
Exhaust air volume: 50Hz: High ≈8 m³/min, Low ≈7 m³/min
60Hz: High ≈10 m³/min, Low ≈6 m³/min
Noise: 50Hz: High 51 dBA, Low 42 dBA (anechoic chamber measurement)
60Hz: High 54 dBA, Low 38 dBA
Power supply: AC100V 1φ 50/60Hz
Installed power: Approx. 350 VA (50Hz), Approx. 400 VA (60Hz)
Weight: Approx. 120 kg
Construction: Steel plate with baked coating (antibacterial finish)
Others: Includes volume damper (φ200), filter replacement indicator lamp, power cord hook; anti-tip brackets available as option.

Features / Technical data (summary)

• Model: PEU02-20
• Collection efficiency: ≥99.99% for 0.3 μm particles
• Filter elements: Main: HEPA filter; Pre-filter: non-woven fabric filter
• Supply air volume (50Hz/60Hz): High ≈12/13 m³/min, Low ≈8/7 m³/min
• Exhaust air volume (50Hz/60Hz): High ≈8/10 m³/min, Low ≈7/6 m³/min
• Noise (50Hz/60Hz): High 51/54 dBA, Low 42/38 dBA (anechoic chamber)
• Power supply: AC100V 1φ 50/60Hz
• Installed power: Approx. 350 VA (50Hz), Approx. 400 VA (60Hz)
• Weight: Approx. 120 kg
• Construction: Steel plate with baked antibacterial coating
• Others: Includes volume damper (φ200), filter replacement indicator lamp, power cord hook; anti-tip brackets optional
