Vessel-sealing electrosurgical unit COMBI
desiccationcuttingbipolar coagulation

Vessel-sealing electrosurgical unit - COMBI - Alan Electronic Systems - desiccation / cutting / bipolar coagulation

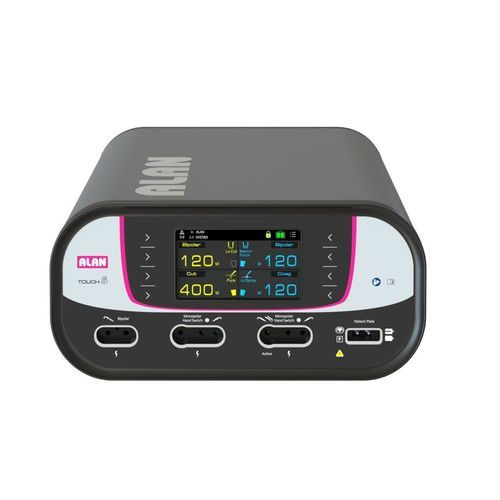

Vessel-sealing electrosurgical unit - COMBI - Alan Electronic Systems - desiccation / cutting / bipolar coagulation
Vessel-sealing electrosurgical unit - COMBI - Alan Electronic Systems - desiccation / cutting / bipolar coagulation - image - 2
Vessel-sealing electrosurgical unit - COMBI - Alan Electronic Systems - desiccation / cutting / bipolar coagulation - image - 3
Add to favorites
Compare this product
Go to the Alan Electronic Systems website for more information

Characteristics

Features
vessel-sealing, desiccation, cutting, bipolar coagulation, fulguration, monopolar coagulation, coagulation, monopolar cutting, bipolar cutting
Medical procedure
laparoscopic surgery, minimally invasive surgery
Technology
high-frequency, HF, plasma
Options
with touchscreen
Cutting power

Max.: 400 W
(0.5 hp)

Min.: 120 W
(0.2 hp)

Coagulating power

Max.: 300 W
(0.4 hp)

Min.: 100 W
(0.1 hp)

Description

Short Description
  • Advanced microcontroller-based electrosurgical generator for open and laparoscopic procedures.
  • 5-inch colour TFT touch screen with feather-touch buttons for direct control from sterile field.
  • 2 monopolar outputs, 1 bipolar output and 1 I-Ligate socket; supports handswitch and footswitch activation.
  • Multiple cutting and coagulation modes with regulated wattages; HF output adjustable via touch screen and handswitch.
  • Vessel sealing capability up to 7 mm thickness; seals withstand up to three times systolic/diastolic pressure.
  • PPCM tissue contact monitoring with real-time graphical feedback and HF leakage control below 10 µA.
  • 99+1 user programmable memories; upgradeable for Argon Plasma Coagulation and Smoke Evacuator systems.
  • Automatic self-test at startup and automatic shutdown with audio-visual alarm on fault.


Description — Modes and Functions
Monopolar Cut Modes:
  • Pure : 400 W @ 350 Ohms CF 1.5
  • Lapcut : 300 W @ 350 Ohms CF 1.5 Input
  • Blend : 250 W @ 350 Ohms (10 Levels) CF Variable
  • EndoCut : 300 W @ 350 Ohms (10 Levels) CF Varied

Monopolar Coagulation Modes:
  • Spray : 120 W @ 350 Ohms CF 9.0
  • Fulgurate : 150 W @ 350 Ohms CF 7.5
  • Desiccate : 200 W @ 350 Ohms CF 3.0
  • Soft : 300 W @ 150 Ohms CF 1.5

Bipolar Cut Modes:
  • LoCut : 120 W @ 100 Ohms CF 1.5
  • HiCut : 120 W @ 100 Ohms CF 1.5

Bipolar Coagulation Modes:
  • Cut/Standard : 120 W @ 100 Ohms CF 1.5
  • Macro/Force : 120 W @ 100 Ohms CF 1.5
  • Micro/Precise : 100 W @ 100 Ohms CF 1.5
  • Auto Start: Auto-Start, Auto-Stop


Input Supply
  • Input : 88-265 V AC, 50/60 Hz
  • Power Consumption : 750 VA Max
  • Input Fuse : 5 A T
  • Output Control : Colour TFT Display with Touch Screen and Push buttons in all Modes
  • Max. Power Output : 400 Watts


Safety Standards
  • Basic Construction : As per IEC 60601-1, IEC 60601-1-2 & IEC 60601-2-2


Classifications
  • Protection Class : I
  • MDD Class : IIb
  • Pollution Degree Class : II
  • Overvoltage Category Class : II
  • Unit Type : CF
  • All Outputs : Floating Output (All output ports are CF Type)
  • Electrical Potential Balancing : Connecting Pin and Indicated by Symbol
  • PER : 98
  • Dimension : 335 mm (W) x 160 mm (H) x 395 mm (D)
  • Weight: Maximum 8.0 Kg


Operating Parameters
  • Ambient temperature range: +10° C to +40° C
  • Relative humidity: 30% to 75% non-condensing
  • Atmospheric pressure: 700 millibars to 1060 millibars


Transport and Storage
  • Ambient temperature range : -30° C to +65° C
  • Relative humidity: 0% to 90% non-condensing
  • Atmospheric pressure: 500 millibars to 1060 millibars


Technical Specifications
  • Product name: COMBI
  • Brand: ALAN Electronic Systems
  • Max. Power Output: 400 W
  • Input Range: 88–265 V AC, 50/60 Hz
  • Power Consumption: 750 VA Max
  • Input Fuse: 5 A T
  • Display and control: 5-inch colour TFT touch screen + feather touch buttons; output adjustable from touch screen and handswitch
  • Monopolar outputs: 2
  • Bipolar outputs: 1
  • I Ligate: 1 (socket for handswitch & footswitch activation)
  • Vessel sealing capability: up to 7 mm vessel thickness
  • HF leakage monitoring: supervises and controls leakage < 10 µA
  • User memory: 99+1 programmable memories
  • Compatibility: Argon Plasma Coagulation & Smoke Evacuator System (upgradeable)
  • Dimensions (W x H x D): 335 x 160 x 395 mm
  • Weight: up to 8.0 kg
  • Standards: IEC 60601-1, IEC 60601-1-2, IEC 60601-2-2
