Saline coagulation electrosurgical unit PLASMA-PLUS
coagulationsaline cuttingfulguration

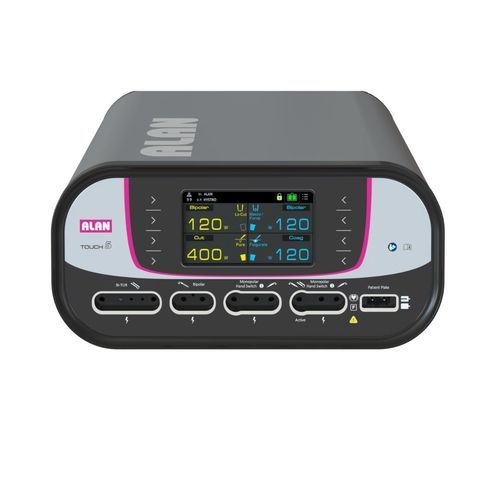

Saline coagulation electrosurgical unit - PLASMA-PLUS - Alan Electronic Systems - coagulation / saline cutting / fulguration
Saline coagulation electrosurgical unit - PLASMA-PLUS - Alan Electronic Systems - coagulation / saline cutting / fulguration
Saline coagulation electrosurgical unit - PLASMA-PLUS - Alan Electronic Systems - coagulation / saline cutting / fulguration - image - 2
Saline coagulation electrosurgical unit - PLASMA-PLUS - Alan Electronic Systems - coagulation / saline cutting / fulguration - image - 3
Add to favorites
Compare this product
Go to the Alan Electronic Systems website for more information

Characteristics

Features
saline coagulation, coagulation, saline cutting, fulguration, monopolar coagulation, cutting, desiccation, bipolar cutting, monopolar cutting, bipolar coagulation
Medical procedure
laparoscopic surgery
Technology
high-frequency, HF, plasma
Options
with touchscreen
Cutting power

Max.: 400 W
(0.5 hp)

Min.: 120 W
(0.2 hp)

Coagulating power

Max.: 300 W
(0.4 hp)

Min.: 100 W
(0.1 hp)

Description

Overview
  • Advanced microcontroller-based electrosurgical generator designed for open and laparoscopic surgeries, providing monopolar and bipolar cutting and coagulation modes.


Key features
  • 5-inch LCD touchscreen with feather touch buttons for sterile-field control.
  • Two monopolar sockets, one bipolar socket and I-Ligate socket; supports handswitch and footswitch activation and dual-surgeon monopolar operation.
  • PPCM patient contact monitoring and support for capacitive patient plate for enhanced patient safety.
  • Self-test at startup and automatic power stop with audio-visual alerts on fault.
  • 99+1 user-programmable memories for storing surgeon preferences.
  • Upgradeable compatibility with Argon Plasma Coagulation and Smoke Evacuator systems.


Monopolar Cut Modes
  • Pure: 400 W @ 350 Ohms CF 1.5
  • Lapcut: 300 W @ 350 Ohms CF 1.5 Input
  • Blend: 250 W @ 350 Ohms (10 Levels) CF Variable
  • EndoCut: 300 W @ 350 Ohms (10 Levels) CF Varied


Monopolar Coagulation Modes
  • Spray: 120 W @ 350 Ohms CF 9.0
  • Fulgurate: 150 W @ 350 Ohms CF 7.5
  • Desiccate: 200 W @ 350 Ohms CF 3.0
  • Soft: 300 W @ 150 Ohms CF 1.5
  • Auto Desiccate: Monopolar Desiccate with Auto-Stop
  • Auto Soft: Monopolar Soft with Auto-Stop


Bipolar Cut Modes
  • LoCut: 120 W @ 100 Ohms CF 1.5
  • HiCut: 120 W @ 100 Ohms CF 1.5
  • ScalCut: 200 W @ 100 Ohms (5 Levels) CF 1.5


Bipolar Coagulation Modes
  • Cut/Standard: 120 W @ 100 Ohms CF 1.5
  • Macro/Force: 120 W @ 100 Ohms CF 1.5
  • Micro/Precise: 100 W @ 100 Ohms CF 1.5
  • Auto Micro: Bipolar Micro with Auto-Stop
  • Auto Start: Auto-Start, Auto-Stop


Bipolar Saline Resection
  • LowCut: 250 W @ 200 Ohms CF 1.5
  • HiCut 1: 300 W @ 200 Ohms CF 1.5
  • HiCut 2: 300 W @ 200 Ohms CF 1.5
  • Effect 1: 300 W @ 200 Ohms CF 1.5


Bipolar Saline Coagulation
  • Desi: 250 W @ 25 Ohms CF 1.5
  • Force: 250 W @ 25 Ohms CF 2.1


Input Supply
  • Input: 88-265V AC, 50/60 Hz
  • Power Consumption: 750 VA Max
  • Input Fuse: 5A T
  • Output Control: Colour TFT display with touch screen and push buttons in all modes
  • Max. Power Output: 400 Watts


Safety Standards
  • Construction and safety as per IEC 60601-1, IEC 60601-1-2 & IEC 60601-2-2


Classifications
  • Protection Class: I
  • MDD Class: II b
  • Pollution Degree Class: II
  • Overvoltage Category Class: II
  • Unit Type: CF
  • All Outputs: Floating Output (all output ports are CF Type)
  • Electrical Potential Balancing: Connecting pin indicated by symbol
  • PER: 98
  • Dimension: 335 mm (W) x 160 mm (H) x 395 mm (D)
  • Weight: Maximum 8.0 Kg


Operating Parameters
  • Ambient temperature range: +10° C to +40° C
  • Relative humidity: 30% to 75% non-condensing
  • Atmospheric pressure: 700 millibars to 1060 millibars


Transport and Storage
  • Ambient temperature range: -30° C to +65° C
  • Relative humidity: 0% to 90% non-condensing
  • Atmospheric pressure: 500 millibars to 1060 millibars


Technical specifications
  • Model: PLASMA-PLUS
  • Brand: ALAN Electronic Systems
  • Maximum Power Output: 400 W
  • Input Voltage: 88-265V AC, 50/60 Hz
  • Power Consumption: 750 VA (Max)
  • Input Fuse: 5A T
  • Display: 5-inch LCD touch screen + feather touch buttons
  • Modes: Multiple monopolar and bipolar cut & coagulation modes, saline resection/coagulation modes
  • Patient safety: PPCM contact monitoring; supports capacitive patient plate; HF leakage control < 10 µA
  • Memory: 99+1 user programmable memories
  • Diagnostics: Self-Test at startup; automatic power stop with audio-visual indication on fault
  • Upgradeability: Compatible with Argon Plasma Coagulation & Smoke Evacuator System
  • Dimensions: 335 x 160 x 395 mm
  • Weight: up to 8.0 Kg
