Desiccation electrosurgical unit PLASMA
saline cuttingsaline coagulationcutting

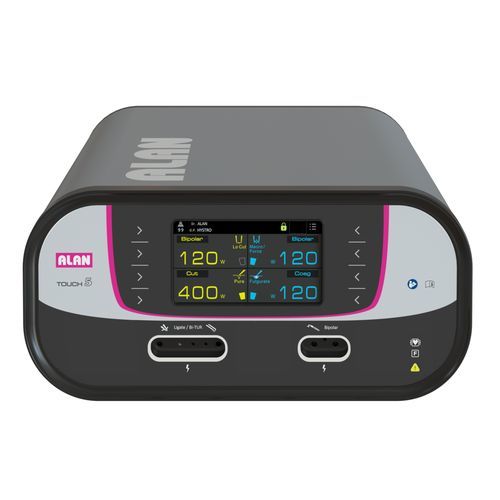

Desiccation electrosurgical unit - PLASMA - Alan Electronic Systems - saline cutting / saline coagulation / cutting
Desiccation electrosurgical unit - PLASMA - Alan Electronic Systems - saline cutting / saline coagulation / cutting
Desiccation electrosurgical unit - PLASMA - Alan Electronic Systems - saline cutting / saline coagulation / cutting - image - 2
Desiccation electrosurgical unit - PLASMA - Alan Electronic Systems - saline cutting / saline coagulation / cutting - image - 3
Add to favorites
Compare this product
Go to the Alan Electronic Systems website for more information

Characteristics

Features
desiccation, saline cutting, saline coagulation, cutting, bipolar cutting, coagulation, bipolar coagulation
Medical procedure
laparoscopic surgery, minimally invasive surgery
Technology
plasma, HF, high-frequency
Options
with touchscreen
Cutting power

Min.: 120 W
(0.2 hp)

Max.: 300 W
(0.4 hp)

Coagulating power

Min.: 100 W
(0.1 hp)

Max.: 250 W
(0.3 hp)

Description

Product Summary
  • An Exclusive Generator, tailored and dedicated only for Bipolar & Bipolar Saline based surgeries.
  • Advanced multiple microcontroller based generator for Open and Laparoscopic Surgeries.
  • 5-inch LCD touch screen display with intuitive interface, and additional feather touch buttons.
  • Intuitive user interface facilitates easy program and modes selection with seamless operations.
  • Features one Bipolar and one Bi-TUR socket, for handswitch/footpedal without change over.
  • Self-Test diagnoses at every START UP for generator healthiness and operational integrity.
  • Touchscreen auto-lock facility to protect modes & power settings from accidental human touch.
  • HF power output can be adjusted using touch screen and handswitch pencil from sterile field.
  • Multiple cutting modes with varied regulated wattages for smooth and precise skin incisions.
  • Isolated Bipolar and Saline Bipolar Resection outputs for dedicated and specialized surgeries.
  • Offers multiple coagulation modes specifically dedicated for Bipolar Saline Resection surgeries.
  • Tissue monitoring technology measures tissue impedance and dynamically varies the HF output.
  • Auto feature in Bipolar ensures optimum power delivery and efficacy, without tissue charring.
  • Automatically stops the power output and provides audio-visual indication during problems.
  • System restores previous activated power settings when encountering power interruptions.
  • Current Meter Display in Bipolar mode to indicate the flow of current during surgeries.
  • HF current leakage monitoring & controlling system supervises and controls it less than 10 uA.
  • 99+1 user programmable memory for surgeons to store & recall surgery preferences and details.
  • Different activation tones for Bipolar Cutting/Coagulation and Resection/Coagulation.
  • Compatible with ALAN’s wired and wireless footswitch for smooth & convenient operation.

Bipolar Cut Modes
  • LoCut: 120 W @ 100 Ohms CF 1.5
  • HiCut: 120 W @ 100 Ohms CF 1.5
  • ScalCut: 200 W @ 100 Ohms (5 Levels) CF 1.5

Bipolar Coagulation Modes
  • Cut/Standard: 120 W @ 100 Ohms CF 1.5
  • Macro/Force: 120 W @ 100 Ohms CF 1.5
  • Micro/Precise: 100 W @ 100 Ohms CF 1.5
  • Auto Micro: Bipolar Micro with Auto-Stop
  • Auto Start: Auto-Start, Auto-Stop

Bipolar Saline Resection
  • LowCut: 250 W @ 200 Ohms CF 1.5
  • HiCut 1: 300 W @ 200 Ohms CF 1.5
  • HiCut 2: 300 W @ 200 Ohms CF 1.5

Bipolar Saline Coagulation
  • Desi: 250 W @ 25 Ohms CF 1.5
  • Force: 250 W @ 25 Ohms CF 2.1

Input Supply
  • Input: 88-265V AC, 50/60 Hz
  • Power Consumption: 750 VA Max
  • Input Fuse: 5A T
  • Output Control: Colour TFT Display with Touch Screen and push buttons in all modes
  • Max. Power Output: 400 Watts

Safety Standards
  • Basic Construction: As per IEC 60601-1, IEC 60601-1-2 & IEC 60601-2-2

Classifications
  • Protection Class: I
  • MDD Class: II b
  • Pollution Degree Class: II
  • Overvoltage Category Class: II
  • Unit Type: CF
  • All Outputs: Floating Output (All output ports are CF Type)
  • Electrical Potential Balancing: Connecting pin and indicated by symbol
  • PER: 98
  • Dimension: 335 mm (W) x 160 mm (H) x 395 mm (D)
  • Weight: Maximum 8.0 Kg

Operating Parameters
  • Ambient temperature range: +10° C to +40° C
  • Relative humidity: 30% to 75% non-condensing
  • Atmospheric pressure: 700 millibars to 1060 millibars

Transport and Storage
  • Ambient temperature range: -30° C to +65° C
  • Relative humidity: 0% to 90% non-condensing
  • Atmospheric pressure: 500 millibars to 1060 millibars

Technical specifications
  • Model: PLASMA
  • Brand: ALAN Electronic Systems
  • Max Power Output: 400 Watts
  • Input Voltage: 88-265V AC, 50/60 Hz
  • Power Consumption: 750 VA Max
  • Input Fuse: 5A T
  • Display: 5-inch LCD touch screen with feather touch buttons
  • Sockets: One Bipolar and One Bi-TUR socket for handswitch/footpedal
  • Tissue Monitoring: Measures tissue impedance and dynamically varies HF output
  • HF leakage control: supervises and controls leakage to less than 10 uA
  • User Memory: 99+1 user programmable memory slots
  • Self-Test: Automatic self-test at startup
  • Dimensions: 335 x 160 x 395 mm
  • Weight: Up to 8.0 Kg
  • Standards: IEC 60601-1, IEC 60601-1-2, IEC 60601-2-2
