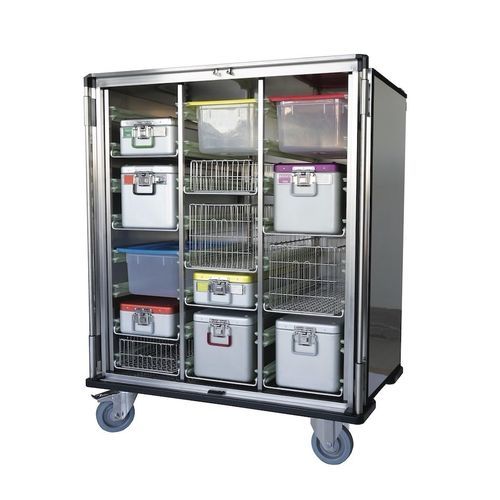

Transport trolley 816 series
for general purposeswith containersmedical

transport trolley
transport trolley
Add to favorites
Compare this product


for general purposes
with containers
Other characteristics
medical, stainless steel


Body in AISI 304 stainless steel sheet with water tight TIG welding on top and bottom. Smooth walls without cutting edges or interstices. Internal frame with 3-2 sections made of SS profiles and nylon fiberglass rails with stopping system, useful width 302 mm suitable to be equipped with metal containers placed on shelves BLSFL3004 or polypropylene containers with lids (BGDNN…) without shelves. Vertical gauge of the rails 150 mm. Double wing doors made of AISI 304 stainless steel bent sheet and injected polyurethane, opening and locking in open position at 270 °. Push closing device with hook on top and bottom. The truck is equipped with an EPDM gasket all around the opening: door, bottom and lid. 2 vertical push-handles on each short side. Strong non-twisting bottom frame in AISI 304 stainless steel. PE buffer on bottom. 2 fixed and 2 swivelling wheels dia. 160 mm with super elastic grey rubber ring, balls-bearings with waterproof plastic protection and zinc plated housings. Rails carrying capacity: 20 kg. In case of use of washing tunnels it is necessary to add the option: wheels with stainless steel housings. External dimensions 1235 x 711 x 1507 mm h Capacity 12 STU 300 mm h or 12 BGDNN70200B Wheels diameter 160 mm Material AISI 304 stainless steel External dimensions 1025 x 711 x 1507 mm h Capacity 8 STU 300 mm h or 8 BGDNN70200B Wheels diameter 160 mm Material AISI 304 stainless steel
