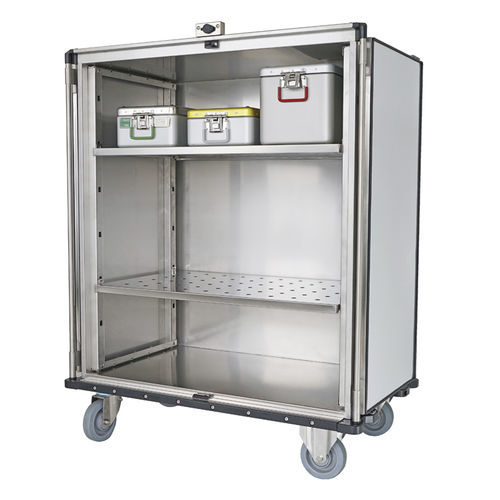

Storage trolley 8625 CR, 8622 CR

transportstainless steel2-shelf

Overview
Body in AISI 304 stainless steel sheet with watertight TIG welding on top and bottom. Smooth internal walls without cutting edges or interstices. Internal frame with two height-adjustable shelves. Double-walled swing doors with opening and locking in open position at 270°. Push-to-close device with hooks top and bottom. Silicone gasket around door, bottom and lid. Two vertical push-handles on each short side. Strong non-twisting bottom frame in AISI 304 stainless steel. PE bumper on bottom. 2 fixed and 2 swivelling wheels Ø 160 mm with super-elastic grey rubber tread and zinc-plated housings. Two independent brakes. For use in washing tunnels add option: wheels with stainless steel housings.

Key features

• Body: AISI 304 stainless steel sheet
• Welding: watertight TIG welding (top and bottom)
• Interior: smooth walls without cutting edges or interstices
• Shelves: internal frame with 2 height-adjustable shelves
• Doors: double-walled swing doors; opening and locking at 270°
• Sealing: silicone gasket around door, bottom and lid
• Closing: push-to-close device with hooks top and bottom
• Handles: 2 vertical push-handles on each short side
• Frame: strong non-twisting bottom frame in AISI 304 stainless steel
• Buffer: PE bumper on bottom
• Wheels: 2 fixed + 2 swivelling wheels, Ø 160 mm, super-elastic grey rubber tread, zinc-plated housings (option: stainless steel housings for washing tunnels)
• Brakes: 2 independent brakes

Models and data table
Model | Description | Internal dimensions | External dimensions | Capacity | Weight | Wheels diameter | Wheels position | Carrying capacity | Colour | Material | Containers | Vertical section
RH8625XN001 | Cupboard truck in stainless steel with 2 height-adjustable shelves | 1010 x 630 x 1200 mm h | 1235 x 711 x 1507 mm h | 9 STU 300 mm h | | 160 mm | | | | AISI 304 stainless steel | |
RH8622XN001 | Cupboard truck in stainless steel with 2 height-adjustable shelves | 800 x 630 x 1200 mm h | 1025 x 711 x 1507 mm h | 6 STU 300 mm h | | 160 mm | | | | AISI 304 stainless steel | |

Technical specifications

• Brand: Alvi
• Models: RH8625XN001 (corresponds to 8625 CR), RH8622XN001 (corresponds to 8622 CR)
• Material: AISI 304 stainless steel (body and internal frame)
• Welding: watertight TIG welding (top and bottom)
• Internal dimensions RH8625XN001: 1010 x 630 x 1200 mm (h)
• External dimensions RH8625XN001: 1235 x 711 x 1507 mm (h)
• Capacity RH8625XN001: 9 STU 300 mm h
• Internal dimensions RH8622XN001: 800 x 630 x 1200 mm (h)
• External dimensions RH8622XN001: 1025 x 711 x 1507 mm (h)
• Capacity RH8622XN001: 6 STU 300 mm h
• Wheels: Ø 160 mm, 2 fixed + 2 swivelling, super-elastic grey rubber tread
• Wheel housings: zinc-plated (option: stainless steel housings for washing tunnels)
• Brakes: 2 independent brakes
• Doors: double-walled with opening and locking at 270°; push-to-close device with hooks top and bottom
• Gasket: silicone gasket around opening (door, bottom, lid)
• Additional: PE bumper on bottom; 2 vertical push-handles on each short side; strong non-twisting bottom frame
