Peristaltic pump tubing Imapure®-EPL

for vialssiliconereusable

Overview

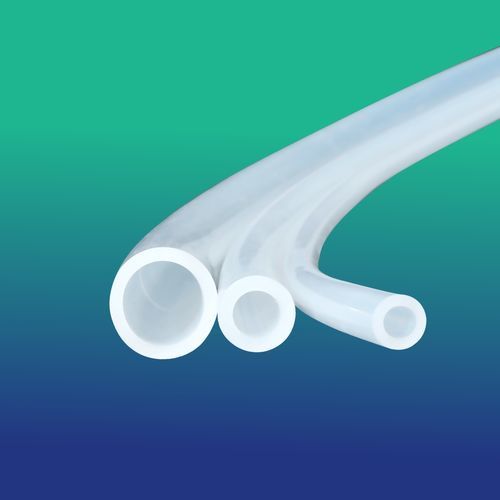

Imapure®-EPL is a platinum‑cured silicone tubing formulated for continuous peristaltic pump operation in biopharma and clinical processing. Engineered to maintain dimensional stability and low wear during prolonged dynamic cycles, it supports reliable fluid transfer in sterile and GMP environments.

Key Features

• Specifically designed to extend peristaltic pump service life
• High resistance to flex cracking under continuous operation
• Stable performance under repeated dynamic stress
• Manufactured in an ISO Class 10000 cleanroom
• Excellent optical clarity and biocompatibility
• Chemically inert, non‑toxic and free from phthalates/nitrosamines

Applications

• Peristaltic pump fluid transfer
• Cell culture and cell processing lines
• Bio‑pharmaceutical production processes
• Drug delivery systems and filling lines
• Vial and cartridge filling

Certifications & Compliance

• FDA 21 CFR 177.2600 compliant
• Extractables study performed per BPOG guidelines
• Nitrosamine‑free declaration
• Phthalate‑free
• USP <87> in vitro
• USP <88> in vitro
• ISO 10993‑4 Hemocompatibility
• ISO 10993‑11 Pyrogen Test

Available Sizes
CATALOGUE | ID IN INCH | ID IN MM | OD IN INCH | OD IN MM | WT IN MM
IPEPL-012-044 | 0.047 | 1.2 | 0.173 | 4.4 | 1.6
IPEPL-015-047 | 0.059 | 1.5 | 0.185 | 4.7 | 1.6
IPEPL-016-031 | 0.063 | 1.6 | 0.125 | 3.17 | 0.785
IPEPL-020-060 | 0.079 | 2 | 0.236 | 6 | 2
IPEPL-024-056 | 0.094 | 2.4 | 0.22 | 5.6 | 1.6
IPEPL-030-080 | 0.118 | 3 | 0.315 | 8 | 2.5
IPEPL-031-047 | 0.122 | 3.1 | 0.187 | 4.76 | 0.83
IPEPL-032-064 | 0.126 | 3.2 | 0.252 | 6.4 | 1.6
IPEPL-032-047 | 0.126 | 3.2 | 0.185 | 4.7 | 0.75
IPEPL-040-060 | 0.157 | 4 | 0.236 | 6 | 1
IPEPL-047-111 | 0.185 | 4.7 | 0.437 | 11.1 | 3.2
IPEPL-047-095 | 0.187 | 4.76 | 0.374 | 9.5 | 2.37
IPEPL-047-079 | 0.187 | 4.76 | 0.311 | 7.9 | 1.57
IPEPL-048-096 | 0.189 | 4.8 | 0.378 | 9.6 | 2.4
IPEPL-050-010 | 0.197 | 5 | 0.394 | 10 | 2.5
IPEPL-050-080 | 0.197 | 5 | 0.315 | 8 | 1.5
IPEPL-055-010 | 0.217 | 5.5 | 0.394 | 10 | 2.25
IPEPL-060-120 | 0.236 | 6 | 0.472 | 12 | 3
IPEPL-060-090 | 0.236 | 6 | 0.354 | 9 | 1.5
IPEPL-060-100 | 0.236 | 6 | 0.394 | 10 | 2
IPEPL-063-127 | 0.25 | 6.35 | 0.5 | 12.7 | 3.175
IPEPL-063-111 | 0.25 | 6.35 | 0.437 | 11.11 | 2.38
IPEPL-063-095 | 0.25 | 6.35 | 0.374 | 9.5 | 1.575
IPEPL-065-112 | 0.256 | 6.5 | 0.441 | 11.2 | 2.35
IPEPL-079-111 | 0.311 | 7.9 | 0.437 | 11.11 | 1.605
IPEPL-079-127 | 0.311 | 7.9 | 0.5 | 12.7 | 2.4
IPEPL-079-174 | 0.311 | 7.9 | 0.685 | 17.4 | 4.75
IPEPL-080-130 | 0.315 | 8 | 0.512 | 13 | 2.5
IPEPL-080-140 | 0.315 | 8 | 0.551 | 14 | 3
IPEPL-080-120 | 0.315 | 8 | 0.472 | 12 | 2
IPEPL-080-110 | 0.315 | 8 | 0.433 | 11 | 1.5
IPEPL-080-160 | 0.315 | 8 | 0.63 | 16 | 4
IPEPL-090-150 | 0.354 | 9 | 0.591 | 15 | 3
IPEPL-095-159 | 0.374 | 9.5 | 0.626 | 15.9 | 3.2
IPEPL-095-127 | 0.374 | 9.5 | 0.5 | 12.7 | 1.6
IPEPL-095-142 | 0.374 | 9.5 | 0.562 | 14.28 | 2.39
IPEPL-096-144 | 0.378 | 9.6 | 0.567 | 14.4 | 2.4
IPEPL-100-180 | 0.394 | 10 | 0.709 | 18 | 4
IPEPL-100-160 | 0.394 | 10 | 0.63 | 16 | 3
IPEPL-100-140 | 0.394 | 10 | 0.551 | 14 | 2
IPEPL-120-180 | 0.472 | 12 | 0.709 | 18 | 3
IPEPL-120-160 | 0.472 | 12 | 0.63 | 16 | 2
IPEPL-127-190 | 0.5 | 12.7 | 0.75 | 19.05 | 3.175
IPEPL-158-222 | 0.625 | 15.87 | 0.875 | 22.22 | 3.175
IPEPL-160-240 | 0.63 | 16 | 0.945 | 24 | 4
IPEPL-180-300 | 0.709 | 18 | 1.181 | 30 | 6
IPEPL-190-270 | 0.748 | 19 | 1.063 | 27 | 4
IPEPL-190-250 | 0.748 | 19 | 0.984 | 25 | 3
IPEPL-190-254 | 0.75 | 19.05 | 1 | 25.4 | 3.175
IPEPL-250-350 | 0.984 | 25 | 1.378 | 35 | 5
IPEPL-200-260 | 0.787 | 20 | 1.024 | 26 | 3
IPEPL-380-560 | 1.496 | 38 | 2.205 | 56 | 9

Technical Specifications

• Brand: Imapure®
• Model / Commercial designation: Imapure®-EPL
• Material: Platinum‑cured silicone
• Intended use: Continuous peristaltic pump operations with extended service intervals
• Cleanroom manufacturing: ISO Class 10000
• Biocompatibility & testing: USP <87> in vitro, USP <88> in vitro, ISO 10993‑4, ISO 10993‑11
• Regulatory / safety: FDA 21 CFR 177.2600 compliant; Phthalate‑free; Nitrosamine‑free declaration; Extractables per BPOG
• Key properties: Flex‑crack resistance, chemical inertness, high clarity
• Available sizes: See catalogue listing above (ID/OD/wall thickness in inches and mm)
