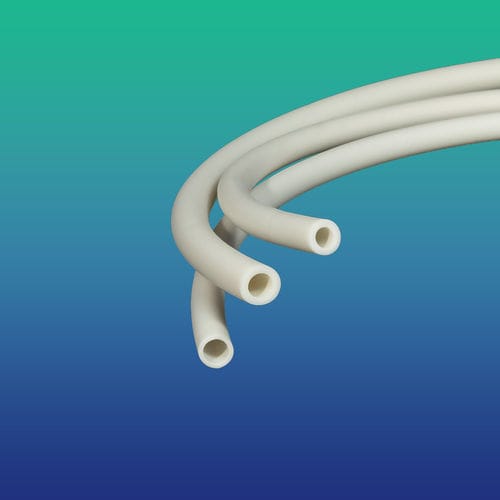

Peristaltic pump tubing Imaprene®

flexible

Overview
Imaprene® pharmaceutical-grade thermoplastic elastomer tubing designed for peristaltic pump fluid transfer. Opaque construction provides excellent flexibility and superior resistance to flex-cracking for consistent pump performance.

Characteristics

• Manufactured from thermoplastic elastomer material selected for pharmaceutical applications.
• Produced and packaged in an ISO-7 cleanroom facility audited by TÜV Nord.
• Excellent chemical and solvent resistance.
• Superior flex-crack resistance to enhance peristaltic pump life and reliability.
• Smooth bore to minimise contamination and particle generation.
• Non-toxic and non-hemolytic.

Applications

• Peristaltic pump-based fluid transfer
• Fermentation processes
• Vaccine transfer and downstream bioprocess handling
• Alcohol-based formulation transfer

Certifications

• E & L study available on request
• FDA 21 CFR 177.2600 certificate
• USP Class VI certificate
• ISO 10993 certificate
• RoHS certification
• Phthalates / Bisphenol / Plasticizer-free certification
• TSE/BSE free certification
• 5 years shelf life

Catalogue
CATALOGUE | ID IN INCH | OD IN INCH | THICKNESS IN INCH | ID IN MM | OD IN MM
8020-0016-078 | 1/16 | 1/8 | 1/32 | 1.60 | 3.17
8020-0016-158 | 1/16 | 13/64 | 1/16 | 1.60 | 4.76
8020-0016-240 | 1/16 | 1/4 | 3/32 | 1.6 | 6.4
8020-0008-160 | 1/32 | 5/32 | 1/16 | 0.8 | 4
8020-0008-240 | 1/32 | 7/32 | 3/32 | 0.8 | 5.6
8020-0005-160 | 1/64 | 9/64 | 1/16 | 0.5 | 3.7
8020-0005-240 | 1/64 | 13/64 | 3/32 | 0.5 | 5.3
8020-0020-100 | 5/64 | 5/32 | 3/64 | 2.00 | 4.00
8020-0020-150 | 5/64 | 13/64 | 1/16 | 2.00 | 5.00
8020-0031-159 | 1/8 | 1/4 | 1/16 | 3.17 | 6.35
8020-0030-150 | 1/8 | 1/4 | 1/16 | 3.00 | 6.00
8020-0030-200 | 1/8 | 9/32 | 5/64 | 3.00 | 7.00
8020-0030-250 | 1/8 | 5/16 | 2.32 | 3.00 | 8.00
8020-0040-100 | 5/32 | 1/4 | 3/64 | 4.00 | 6
8020-0040-150 | 5/32 | 9/32 | 1/16 | 4.00 | 7.00
8020-0040-200 | 5/32 | 5/16 | 5/64 | 4.00 | 8
8020-0040-250 | 5/32 | 23/64 | 3/32 | 4.00 | 9.00
8020-0040-300 | 5/32 | 25/64 | 1/8 | 4.00 | 10.0
8020-0047-157 | 3/16 | 5/16 | 1/16 | 4.76 | 7.90
8020-0047-237 | 3/16 | 3/8 | 3/32 | 4.76 | 9.50
8020-0024-160 | 3/32 | 7/32 | 1/16 | 2.4 | 5.6
8020-0012-160 | 3/64 | 11/64 | 1/16 | 1.2 | 4.4
8020-0050-150 | 13/64 | 5/16 | 1/16 | 5.00 | 8
8020-0050-200 | 13/64 | 23/64 | 5/64 | 5 | 9.00
8020-0050-250 | 13/64 | 25/64 | 3/32 | 5 | 10
8020-0050-300 | 13/64 | 7/16 | 1/8 | 5.00 | 11.0
8020-0060-100 | 15/64 | 5/16 | 3/64 | 6.00 | 8.00
8020-0060-150 | 15/64 | 23/64 | 1/16 | 6.00 | 9.00
8020-0060-200 | 15/64 | 25/64 | 5/64 | 6.00 | 10.0
8020-0060-250 | 15/64 | 7/16 | 3/32 | 6.00 | 11.0
8020-0060-300 | 15/64 | 15/32 | 1/8 | 6.00 | 12
8020-0063-157 | 1/4 | 3/8 | 1/16 | 6.35 | 9.50
8020-0063-238 | 1/4 | 7/16 | 3/32 | 6.35 | 11.11
8020-0063-317 | 1/4 | 1/2 | 1/8 | 6.35 | 12.70
8020-0079-240 | 5/16 | 1/2 | 3/32 | 7.90 | 12.7
8020-0080-150 | 5/16 | 7/16 | 1/16 | 8.00 | 11.0
8020-0080-200 | 5/16 | 15/32 | 5/64 | 8.00 | 12.0
8020-0080-300 | 5/16 | 35/64 | 1/8 | 8.00 | 14.0
8020-0080-400 | 5/16 | 5/8 | 5/32 | 8 | 16.0
8020-0079-240 | 5/16 | 1/2 | 3/32 | 8 | 12.8
8020-0090-300 | 23/64 | 19/32 | 1/8 | 9.00 | 15.0
8020-0090-350 | 23/64 | 5/8 | 9/64 | 9.00 | 16.0
8020-0095-160 | 3/8 | 1/2 | 1/16 | 9.50 | 12.70
8020-0095-239 | 3/8 | 9/32 | 3/32 | 9.50 | 14.28
8020-0095-318 | 3/8 | 5/8 | 1/8 | 9.50 | 15.87
8020-0095-477 | 3/8 | 3/4 | 3/16 | 9.50 | 19.05
8020-0100-200 | 25/64 | 35/64 | 5/64 | 10.0 | 14.0
8020-0100-300 | 25/64 | 5/8 | 1/8 | 10.0 | 16.0
8020-0100-400 | 25/64 | 45/64 | 5/32 | 10.0 | 18.0
8020-0120-200 | 15/32 | 5/8 | 5/64 | 12 | 16
8020-0120-300 | 15/32 | 45/64 | 1/8 | 12 | 18.0
8020-0120-400 | 15/32 | 25/32 | 5/32 | 12 | 20.0
8020-0127-238 | 1/2 | 11/16 | 3/32 | 12.70 | 17.46
8020-0127-317 | 1/2 | 3/4 | 1/8 | 12.70 | 19.05
8020-0127-476 | 1/2 | 7/8 | 3/16 | 12.70 | 22.22
8020-0127-635 | 1/2 | 1 | 1/4 | 12.70 | 25.4
8020-0150-300 | 19/32 | 53/64 | 1/8 | 15.0 | 21.0
8020-0158-317 | 5/8 | 7/8 | 1/8 | 15.87 | 22.22
8020-0158-476 | 5/8 | 1 | 3/16 | 15.87 | 25.4
8020-0160-400 | 5/8 | 15/16 | 5/32 | 16.00 | 24.0
8020-0190-300 | 3/46 | 3/64 | 1/8 | 19.00 | 25
8020-0190-400 | 3/4 | 1-1/16 | 5/32 | 19.00 | 27.0
8020-0190-320 | 3/4 | 1 | 1/8 | 19.05 | 25.4
8020-0190-470 | 3/4 | 1-1/8 | 3/16 | 19.05 | 28.57
8020-0190-640 | 3/4 | 1-1/4 | 1/4 | 19.05 | 31.75
8020-0250-300 | 63/64 | 1-7/32 | 1/8 | 25.0 | 31.0
8020-0250-500 | 63/64 | 1-3/8 | 13/64 | 25 | 35.0
8020-0250-600 | 63/64 | 1-29/64 | 15/64 | 25.0 | 37.0
8020-0250-170 | 1 | 1-1/8 | 3/16 | 25.40 | 28.75
8020-0250-640 | 1 | 1-1/2 | 1/4 | 25.40 | 38.1
8020-0254-480 | 1 | 3/8 | 3/16 | 25.4 | 35

Technical specifications

• Product name: Imaprene® (pharmaceutical-grade thermoplastic elastomer tubing)
• Manufacturer: Ami Polymer
• Intended use: Peristaltic pump transfer and other fluid transfer applications including fermentation, vaccine transfer and alcohol-based formulations
• Manufacturing & packaging: ISO-7 cleanroom facility (audited by TÜV Nord)
• Material properties: Opaque; excellent flexibility; superior flex-crack resistance; smooth bore to minimise contamination; excellent chemical & solvent resistance
• Biocompatibility / safety: Non-toxic; non-hemolytic; USP Class VI and ISO 10993 certificates available
• Regulatory / compliance: FDA 21 CFR 177.2600; RoHS; Phthalates/Bisphenol/Plasticizer-free; TSE/BSE free
• Shelf life: 5 years
• Available sizes & catalogue numbers: see catalogue table above (inner/outer diameters and wall thickness in inches and mm)
