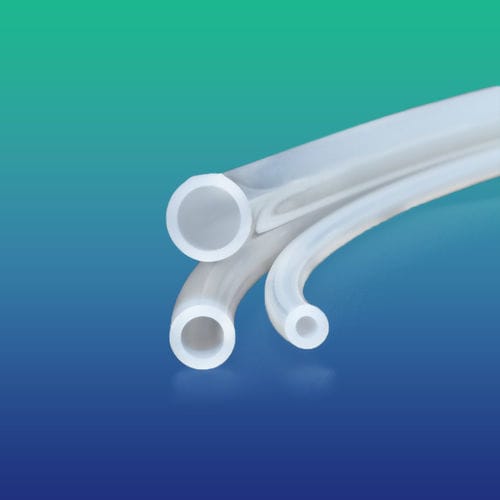

Peristaltic pump tubing Imaflow®

intravenous infusionsiliconestraight

Product overview
Imaflow® is platinum grade silicone tubing designed for general purpose applications in food and pharmaceutical industries. Imaflow® is smooth bore tubing compared to peroxide grade tubing which reduces risk of particle entrapment during transfer of fluid. Imaflow® meets with non-regulatory market requirements.

Characteristics

• Manufactured by using general purpose platinum grade silicone rubber.
• Manufactured and packaged in clean room of class 10000 facility audited by TUV Nord.
• Better fluid transfer characteristics compared to peroxide silicone tubing.
• Available with FDA approved silicone based color coding.
• Better transparency and higher shelf life compared to peroxide tubing.
• Free of any heavy metals and hazardous substances.

Applications

• Peristaltic pump based fluid transfer
• Chemical and analytical analysis
• Sanitary application
• Drug delivery and sampling
• Food and beverages transfer

Certifications

• NSF-51 Certification on Resin
• FDA 21 CFR 177.2600
• Phthalate/Bisphenol Free COA
• RoHS Certification
• TSE/BSE Certification
• Acute Systemic Toxicity Test (USP Class VI)
• Intracutaneous Toxicity Test (USP Class VI)
• Implantation Test (USP Class VI)

Catalogue (size / references)
CATALOGUE | ID IN INCH | OD IN INCH | THICKNESS IN INCH | ID IN MM | OD IN MM
701-203-60 | 1/16 | 1/8 | 1/32 | 1.60 | 3.17
701-113B-60 | 1/16 | 13/64 | 1/16 | 1.60 | 4.76
701-203C-60 | 1/16 | 1/4 | 3/32 | 1.6 | 6.4
701-203-60 | 1/32 | 5/32 | 1/16 | 0.8 | 4
701-249-60 | 1/32 | 7/32 | 3/32 | 0.8 | 5.6
701-247-60 | 1/64 | 9/64 | 1/16 | 0.5 | 3.7
701-248-60 | 1/64 | 13/64 | 3/32 | 0.5 | 5.3
701-114-60 | 5/64 | 5/32 | 3/64 | 2.00 | 4.00
701-115-60 | 5/64 | 13/64 | 1/16 | 2.00 | 5.00
701-204-60 | 1/8 | 1/4 | 1/16 | 3.17 | 6.35
701-117-60 | 1/8 | 1/4 | 1/16 | 3.00 | 6.00
701-118-60 | 1/8 | 9/32 | 5/64 | 3.00 | 7.00
701-205-60 | 1/8 | 5/16 | 2.32 | 3.00 | 8.00
701-119-60 | 5/32 | 1/4 | 3/64 | 4.00 | 6
701-120-60 | 5/32 | 9/32 | 1/16 | 4.00 | 7.00
701-121-60 | 5/32 | 5/16 | 5/64 | 4.00 | 8
701-206-60 | 5/32 | 23/64 | 3/32 | 4.00 | 9.00
701-174-60 | 5/32 | 25/64 | 1/8 | 4.00 | 10.0
701-122-60 | 3/16 | 5/16 | 1/16 | 4.76 | 7.90
701-123-60 | 3/16 | 3/8 | 3/32 | 4.76 | 9.50
701-250-60 | 3/32 | 7/32 | 1/16 | 2.4 | 5.6
701-203B-60 | 3/64 | 11/64 | 1/16 | 1.2 | 4.4
701-125-60 | 13/64 | 5/16 | 1/16 | 5.00 | 8
701-126-60 | 13/64 | 23/64 | 5/64 | 5 | 9.00
701-127-60 | 13/64 | 25/64 | 3/32 | 5 | 10
701-128-60 | 13/64 | 7/16 | 1/8 | 5.00 | 11.0
701-129-60 | 15/64 | 5/16 | 3/64 | 6.00 | 8.00
701-130-60 | 15/64 | 23/64 | 1/16 | 6.00 | 9.00
701-131-60 | 15/64 | 25/64 | 5/64 | 6.00 | 10.0
701-132-60 | 15/64 | 7/16 | 3/32 | 6.00 | 11.0
701-133-60 | 15/64 | 15/32 | 1/8 | 6.00 | 12
701-171-60 | 1/4 | 3/8 | 1/16 | 6.35 | 9.50
701-208-60 | 1/4 | 7/16 | 3/32 | 6.35 | 11.11
701-209-60 | 1/4 | 1/2 | 1/8 | 6.35 | 12.70
701-140B-60 | 5/16 | 1/2 | 3/32 | 7.90 | 12.7
701-139-60 | 5/16 | 7/16 | 1/16 | 8.00 | 11.0
701-140-60 | 5/16 | 15/32 | 5/64 | 8.00 | 12.0
701-142-60 | 5/16 | 35/64 | 1/8 | 8.00 | 14.0
701-143-60 | 5/16 | 5/8 | 5/32 | 8 | 16.0
701-140B-60 | 5/16 | 1/2 | 3/32 | 8 | 12.8
701-145-60 | 23/64 | 19/32 | 1/8 | 9.00 | 15.0
701-146-60 | 23/64 | 5/8 | 9/64 | 9.00 | 16.0
701-177B-60 | 3/8 | 1/2 | 1/16 | 9.50 | 12.70
701-191-60 | 3/8 | 9/32 | 3/32 | 9.50 | 14.28
701-172-60 | 3/8 | 5/8 | 1/8 | 9.50 | 15.87
701-193-60 | 3/8 | 3/4 | 3/16 | 9.50 | 19.05
701-149-60 | 25/64 | 35/64 | 5/64 | 10.0 | 14.0
701-150-60 | 25/64 | 5/8 | 1/8 | 10.0 | 16.0
701-210-60 | 25/64 | 45/64 | 5/32 | 10.0 | 18.0
701-151-60 | 15/32 | 5/8 | 5/64 | 12 | 16
701-152-60 | 15/32 | 45/64 | 1/8 | 12 | 18.0
701-153-60 | 15/32 | 25/32 | 5/32 | 12 | 20.0
701-194-60 | 1/2 | 11/16 | 3/32 | 12.70 | 17.46
701-173-60 | 1/2 | 3/4 | 1/8 | 12.70 | 19.05
701-195-60 | 1/2 | 7/8 | 3/16 | 12.70 | 22.22
701-196-60 | 1/2 | 1 | 1/4 | 12.70 | 25.4
701-211-60 | 19/32 | 53/64 | 1/8 | 15.0 | 21.0
701-197-60 | 5/8 | 7/8 | 1/8 | 15.87 | 22.22
701-198-60 | 5/8 | 1 | 3/16 | 15.87 | 25.4
701-212-60 | 5/8 | 15/16 | 5/32 | 16.00 | 24.0
701-160-60 | 3/46 | 3/64 | 1/8 | 19.00 | 25
701-213-60 | 3/4 | 1-1/16 | 5/32 | 19.00 | 27.0
701-160B-60 | 3/4 | 1 | 1/8 | 19.05 | 25.4
701-199-60 | 3/4 | 1-1/8 | 3/16 | 19.05 | 28.57
701-200-60 | 3/4 | 1-1/4 | 1/4 | 19.05 | 31.75
701-167-60 | 63/64 | 1-7/32 | 1/8 | 25.0 | 31.0
701-188-60 | 63/64 | 1-3/8 | 13/64 | 25 | 35.0
701-189-60 | 63/64 | 1-29/64 | 15/64 | 25.0 | 37.0
701-201-60 | 1 | 1-1/8 | 3/16 | 25.40 | 28.75
701-202-60 | 1 | 1-1/2 | 1/4 | 25.40 | 38.1
701-181-60 | 1 | 3/8 | 3/16 | 25.4 | 35

Caractéristiques / spécifications techniques

• Material: Platinum cured (platinum grade) silicone rubber.
• Product form: Smooth bore transparent tubing for reduced particle entrapment.
• Manufacturing/packaging: Clean room class 10000 (TUV Nord audited).
• Regulatory / certifications: NSF-51 (resin), FDA 21 CFR 177.2600, RoHS, TSE/BSE, USP Class VI toxicity and implantation tests; Phthalate/Bisphenol free COA.
• Performance: Improved fluid transfer vs. peroxide silicone; improved transparency and shelf life.
• Safety: Free of heavy metals and hazardous substances; available with FDA-approved silicone color coding.
• Typical uses: Peristaltic pumps, sanitary and pharmaceutical fluid transfer, chemical/analytical sampling, drug delivery, food & beverage transfer.
• Available sizes & catalogue references: see catalogue listing above (multiple IDs, inch/mm dimensions and wall thicknesses).
