Medical device manufacturing tubing Imafit®

siliconepolyesterflexible

Product Overview

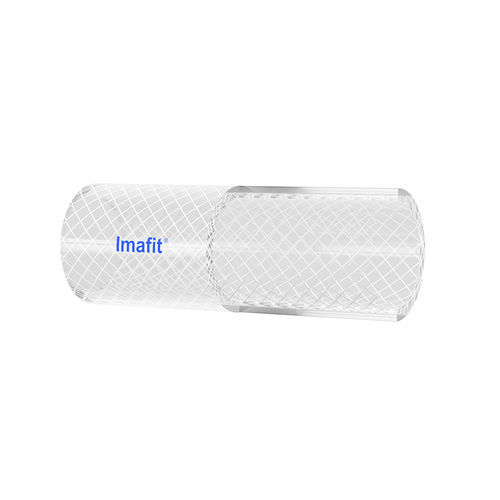

Imafit® is a platinum-cured, pharma-grade silicone hose reinforced with polyester braiding designed for pressurized fluid transfer in pharmaceutical and biotech environments. Manufactured under strict quality controls, Imafit® provides flexibility with a reduced minimum bend radius suitable for critical liquid handling.

Applications

• Pharmaceutical and Biotech material transfer
• Critical liquid transfer
• Load cell and cell cultures
• Analytical laboratories, food and beverage processing
• Biotechnology processes

Certifications

• TOXIKON-based Extractables & Leachables (E&L) studies available on inner liner
• NSF-51 certification on resin liner
• Conforms to US FDA 21 CFR 177.2600 (food contact)
• Conforms to USP Class VI
• Conforms to ISO 10993 (biocompatibility)
• RoHS compliant, free of restricted heavy metals
• Free of phthalates, bisphenol and volatile plasticizers
• TSE/BSE free (no animal-derived materials)
• Complete validation package available upon request

Key Features

• Excellent flexibility for routed assemblies
• Manufactured from low-volatile grade platinum-cured silicone resin
• Imparts no taste or odor
• Lot traceability
• Temperature range: -80°C to 230°C
• Available with SS 316L tri-clover end (RA ≤ 0.5 at bore)
• Colored outer layer available
• Customer color coding available
• Sterilizable by autoclave, ethylene oxide (EtO) gas and gamma radiation

Standard Size Available (catalog)
# | PART NO. | SIZE IN MM (ID x OD) | SIZE IN INCH (ID) | MAX WORKING PRESSURE (IN BAR) @ 27°C | MIN BURST PRESSURE (IN BAR) @ 27°C | BEND RADIUS (IN MM) | VACCUM Hg @ 70°F/27°C
1 | 0613FT | 6 x 13 | 1/4” | 10.0 | 30 | 50 | NA
2 | 0916FT | 9 x 16 | 11/32” | 9.0 | 27 | 50 | NA
3 | 1220FT | 12 x 20 | 1/2” | 7.0 | 21 | 80 | NA
4 | 1624FT | 16 x 24 | 5/8” | 7.0 | 21 | 90 | NA
5 | 1927FT | 19 x 27 | 3/4” | 6.0 | 18 | 110 | NA
6 | 2535FT | 25 x 35 | 1” | 4.0 | 12 | 160 | NA
7 | 3242FT | 32 x 42 | 1 1/4” | 3.0 | 9 | 200 | NA
8 | 3850FT | 38 x 50 | 1 1/2” | 2.5 | 8 | C/P | NA

Technical Specifications

• Material: Platinum-cured silicone (low-volatile grade silicone resin)
• Reinforcement: Polyester braiding
• Temperature range: -80°C to 230°C
• Sterilization: Autoclave, Ethylene Oxide (EtO) gas, Gamma Radiation
• Available end fittings: SS 316L tri-clover ends (RA ≤ 0.5 at bore) option
• Compliance: US FDA 21 CFR 177.2600, USP Class VI, ISO 10993, NSF-51 (resin liner), RoHS
• Free of phthalates, bisphenol and volatile plasticizers; TSE/BSE free
• Lot traceability and complete validation package available
• Imparts no taste or odor; suitable for critical liquid and pharmaceutical transfers
• Multiple standard sizes available (see standard sizes table above)
