Medical device manufacturing tubing Imawrap-C™

siliconestainless steelpolyester

Overview

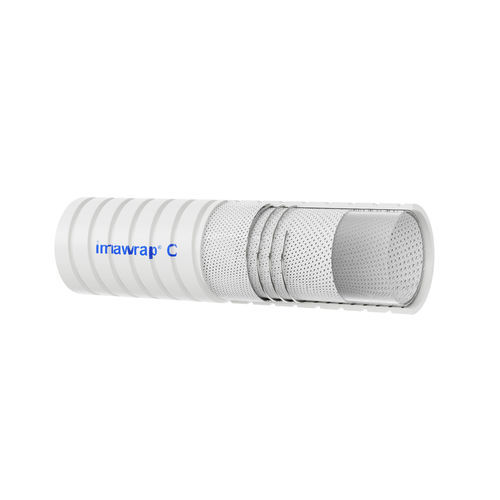

Imawrap-C™ is an inner-smoothbore, platinum-cured silicone hose reinforced with SS 316L helical wire and four layers of high-quality polyester fabric wrapping, finished with a silicone outer convoluted cover. The multiple polyester fabric layers increase burst pressure and improve kink resistance. The hose is suited for high-pressure steam transfer and hygienic material handling in pharmaceutical, biotech and food processing environments.

Applications

• Pharmaceutical processing
• Food processing
• Load cell applications
• CIP and WFI transfer
• Bulk powder transfer
• Cosmetic and ultrapure water transfer
• High-pressure steam transfer

Certifications

• Toxikon-based E&L studies available on the inner liner
• NSF-51 certification on resin liner
• Conforms to US FDA 21 CFR 177.2600 (Food Grade)
• Conforms to USP Class VI
• Conforms to ISO 10993-1
• RoHS; free of phthalates / bisphenol / volatile plasticizers; TSE / BSE certification
• Animal Origin Certification (free of animal-derived material)
• USFDA DMF accreditation #26201
• Complete validation package available upon request

Key Features

• High working pressure rating for safe material transfer
• Designed for high vacuum rating applications
• Excellent flexibility and kink resistance
• Lot traceable
• Temperature range: -55 °C to 220 °C
• Available with SS316L tri-clamp (tri-clover) end fittings
• Sterilizable by autoclave, CIP & SIP, ethylene oxide gas and gamma radiation

Standard Size Available (Catalogue)
# | CATALOGUE NO. | SIZE IN MM (ID x OD) | SIZE IN INCH (ID) | MAX WORKING PRESSURE (IN BAR) @ 27°C | MIN BURST PRESSURE (IN BAR) @ 27°C | MIN BEND RADIUS IN (MM) | VACUUM Hg @ 70°F/27°C (IN MM)
1 | 1222WP | 12 x 22 | ½” | 16 | 34 | 40 | FULL
2 | 1628WP | 16 x 28 | 5/8” | 14 | 34 | 50 | FULL
3 | 1930WP | 19 x 30 | ¾” | 13 | 34 | 60 | FULL
4 | 2538WP | 25 x 38 | 1” | 10.5 | 32 | 90 | FULL
5 | 3246WP | 32 x 46 | 1¼” | 10 | 32 | 90 | 500
6 | 3852WP | 38 x 52 | 1½” | 9.5 | 30 | 110 | 400
7 | 5064WP | 50 x 64 | 2” | 8 | 30 | C/P | 300
8 | 6478WP | 64 x 78 | 2½” | 6.5 | 25 | C/P | C/P
9 | 7590WP | 75 x 90 | 3” | 5 | 20 | C/P | C/P

Technical specifications

• Inner liner: Smoothbore, platinum-cured silicone
• Reinforcement: SS 316L helical wire plus 4-ply polyester fabric wrapping
• Outer cover: Silicone outer convoluted cover
• Enhanced burst pressure due to multiple polyester plies
• Intended uses: high kink resistance, high-pressure steam transfer, pharmaceutical, biotech, food, CIP/WFI, bulk powder, cosmetics, ultrapure water
• Temperature range: -55 °C to 220 °C
• Available end fittings: SS316L tri-clamp (tri-clover) ends (optional)
• Sterilization methods: Autoclave, CIP & SIP, ethylene oxide gas, gamma radiation
• Certifications/Standards: US FDA 21 CFR 177.2600, USP Class VI, ISO 10993-1, NSF-51 (resin liner), RoHS, TSE/BSE free, Animal Origin free, USFDA DMF #26201
• Lot traceability: Yes
• Designed for high vacuum rating and excellent flexibility
