Medical device manufacturing tubing Imavacfit®

siliconestainless steelpolyester

Overview

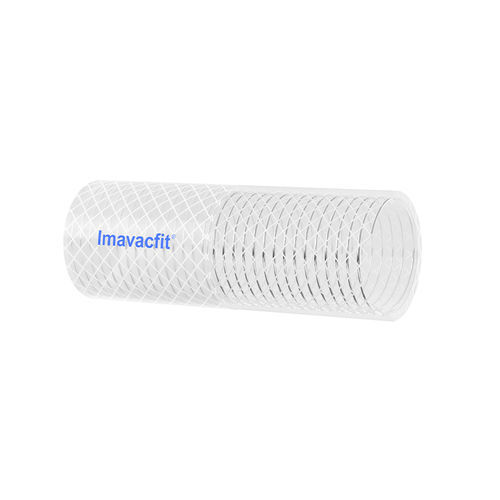

Imavacfit® is a platinum cured silicone hose reinforced with SS 316L helical wire and polyester braiding, engineered for pressurized fluid transfer and high-vacuum applications. It provides higher burst pressure and improved vacuum resistance compared to Imavac® while maintaining chemical compatibility and hygienic properties suitable for pharmaceutical, food and biotech environments.

Applications

• Pharmaceutical processing
• Powder and fluid transfer
• High vacuum pump systems
• Food processing
• Load cell applications
• Biotechnology
• Bulk transfer
• Fermentations and bioreactors

Certifications

• TOXIKON base E&L studies available on inner liner
• NSF-51 certification on resin liner
• Conforms to US FDA 21 CFR 177.2600 food grade standard
• Conforms to USP Class VI
• Conforms to ISO 10993
• RoHS certified, free of restricted heavy metals
• Free of phthalate, bisphenol and volatile plasticizers
• TSE/BSE certification (free of animal-derived material)

Key Features

• Higher burst pressure compared to Imafit® and Imavac®
• Designed for high vacuum rating applications
• Antistatic properties to dissipate static electrical charge
• No taste or odor imparted
• Lot traceable
• Temperature range: -80°C to 230°C
• Optional SS316L Tri-clover end with RA ≤ 0.5 at bore
• Sterilizable by autoclave, ethylene oxide gas and gamma radiation

Standard sizes available

• 1 | 0613VF | 6 x 13 mm | 1/4” ID | Max working pressure 12.5 bar @27°C | Min burst 48.5 bar @27°C | Bend radius 60 mm | Vacuum 760 Hg
• 2 | 0916VF | 9 x 16 mm | 11/32” ID | Max working pressure 12.0 bar @27°C | Min burst 48 bar @27°C | Bend radius 70 mm | Vacuum 760 Hg
• 3 | 1220VF | 12 x 20 mm | 1/2” ID | Max working pressure 11.0 bar @27°C | Min burst 41.5 bar @27°C | Bend radius 70 mm | Vacuum 760 Hg
• 4 | 1624VF | 16 x 24 mm | 5/8” ID | Max working pressure 10.5 bar @27°C | Min burst 36 bar @27°C | Bend radius 85 mm | Vacuum 760 Hg
• 5 | 1927VF | 19 x 27 mm | 3/4” ID | Max working pressure 9.0 bar @27°C | Min burst 34.5 bar @27°C | Bend radius 95 mm | Vacuum 760 Hg
• 6 | 2535VF | 25 x 35 mm | 1” ID | Max working pressure 8.5 bar @27°C | Min burst 34.5 bar @27°C | Bend radius 140 mm | Vacuum 760 Hg
• 7 | 3242VF | 32 x 42 mm | 1¼” ID | Max working pressure 8.5 bar @27°C | Min burst 34.5 bar @27°C | Bend radius 150 mm | Vacuum 600 Hg
• 8 | 3850VF | 38 x 50 mm | 1½” ID | Max working pressure 7.5 bar @27°C | Min burst 32 bar @27°C | Bend radius 175 mm | Vacuum 600 Hg
• 9 | 5062VF | 50 x 62 mm | 2” ID | Max working pressure 6.5 bar @27°C | Min burst 28 bar @27°C | Bend radius 245 mm | Vacuum 550 Hg

Technical specifications

• Material: Platinum cured silicone
• Reinforcement: SS 316L helical wire and polyester braiding
• Temperature range: -80°C to 230°C
• Sterilization: Autoclave, ethylene oxide gas, gamma radiation
• Certifications: US FDA 21 CFR 177.2600, USP Class VI, ISO 10993, NSF-51 (resin liner), RoHS
• Properties: High burst pressure, high vacuum rating, antistatic, no taste or odor, lot traceable
• Optional end fittings: Available with SS316L Tri-clover end, RA ≤ 0.5 at bore
• Intended use: Pressurized fluid transfer and vacuum applications in pharmaceutical, food, biotech and related industries
