Overview

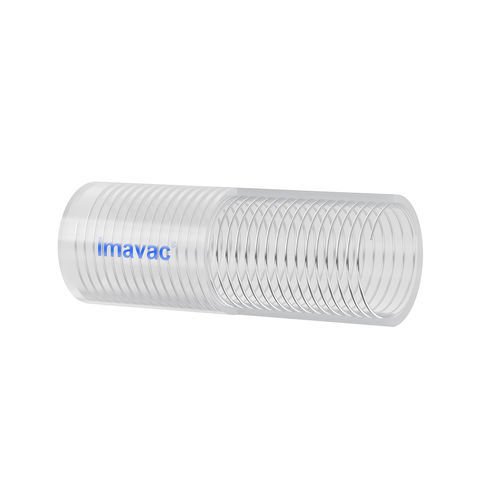

Imavac® is a platinum‑cured silicone hose reinforced with SS 316L helical wire. It provides improved transparency for flow visualization, good kink resistance and is engineered for material transfer under high vacuum in pharmaceutical and food processing environments. Imavac® outperforms Imafit® (polyester braided hose) for high pressure and high vacuum ratings and is available with antistatic properties for charge dissipation.

Applications

• Pharmaceutical processing
• Powder and fluid transfer
• High vacuum transfer systems
• Load cell connections
• Food processing and bulk transfer
• Biotechnology production lines

Certifications

• TOXIKON base E&L studies available on inner liner
• NSF-51 certification on resin liner
• Complies with US FDA 21 CFR 177.2600 (food grade)
• USP Class VI compliant
• ISO 10993 biocompatibility
• RoHS certified — free of restricted heavy metals
• Free of phthalates, bisphenol and volatile plasticizers
• TSE/BSE certification — free of animal-derived material

Key Features

• Platinum-cured silicone construction
• SS 316L helical wire reinforcement for vacuum and pressure resistance
• Improved transparency for visual flow monitoring
• Kink-resistant design
• Antistatic option to dissipate static electrical charge
• No taste or odor transfer to product
• Lot traceable manufacturing
• Temperature range: -80°C to 230°C
• Available with SS 316L Tri-clamp end with Ra ≤ 0.5 at bore
• Sterilizable by autoclave, ethylene oxide gas and gamma radiation

Standard Size Available
# | PART NO. | SIZE IN MM (ID x OD) | SIZE IN INCH (ID) | MAX WORKING PRESSURE (IN BAR) @ 27°C | MIN BURST PRESSURE (IN BAR) @ 27°C | BEND RADIUS (IN MM) | VACUUM Hg @ 70°F/27°C (IN MM)
1 | 0613VC | 6 x 13 | ¼” | 12.0 | 48 | 50 | 760
2 | 0916VC | 9 x 16 | 11/32” | 11.5 | 48 | 60 | 760
3 | 1220VC | 12 x 20 | ½” | 10.5 | 45 | 70 | 760
4 | 1624VC | 16 x 24 | 5/8” | 10.0 | 35 | 80 | 760
5 | 1927VC | 19 x 27 | ¾” | 8.5 | 30 | 90 | 760
6 | 2535VC | 25 x 35 | 1” | 8.5 | 30 | 125 | 760
7 | 3242VC | 32 x 42 | 1¼” | 8.0 | 27.5 | 140 | 600
8 | 3850VC | 38 x 50 | 1½” | 7.5 | 25 | 170 | 600
9 | 5062VC | 50 x 62 | 2” | 6.0 | 22.5 | 240 | 550
10 | 6476VC | 64 x 76 | 2½” | 4.0 | 20 | C/P | 500
11 | 7587VC | 75 x 87 | 3” | 3.0 | 15 | C/P | 400
12 | 100112VC | 100 x 112 | 4” | 2.0 | 10 | C/P | 400

Technical specifications

• Material: Platinum‑cured silicone
• Reinforcement: SS 316L helical wire
• Improved transparency for flow visualization
• Kink resistance for flexible routing
• Intended use: material transfer under high vacuum in pharmaceutical and food processing industries
• Antistatic option to dissipate static electrical charge
• Temperature range: -80°C to 230°C
• Sterilization: autoclave, ethylene oxide gas, gamma radiation
• Compliance: FDA 21 CFR 177.2600 (food grade), USP Class VI, ISO 10993, NSF-51 (resin liner), RoHS
• Free of phthalates, bisphenol and volatile plasticizers; TSE/BSE free
• Lot traceable
