Medical device manufacturing tubing Imawrap®

siliconepolyester

Product overview

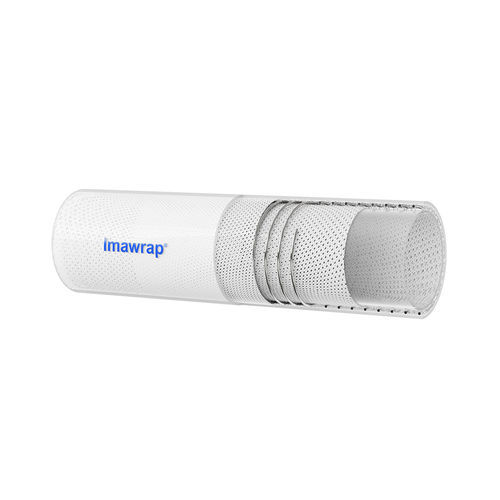

Imawrap® suction hose made from platinum‑cured silicone with a mandrel wrapped inner liner and 4‑ply polyester fabric reinforcement incorporating an SS 316 helical wire. Designed for high‑pressure transfer of semi‑liquid and liquid media and compatible with vacuum service. Manufactured in an ISO Class 7 cleanroom and suitable for applications in biopharma, pharmaceuticals, food, beverage and cosmetics where controlled extractables and hygienic transfer are required.

Applications

• Biopharmaceutical process lines
• Pharmaceutical production and transfer
• Vacuum and suction operations
• Bioreactor transfer systems
• Food, beverage and cosmetics production

Certifications

• TOXIKON extractables & leachables (E&L) study available on inner liner
• NSF 51 certification on silicone resin
• Compliant with US FDA 21 CFR 177.2600 (food contact)
• Compliant with USP Class VI
• Complies with ISO 10993 biocompatibility tests
• RoHS compliant — free of restricted heavy metals
• Free of phthalates, bisphenol and volatile plasticizers
• TSE/BSE: free of animal‑derived materials
• Complete validation package available on request

Key features

• Flexible with good bending radius and kink resistance
• Sizes from 1/4 in to 6 in nominal diameter
• Low volatile, platinum‑cured silicone resin
• Manufactured under ISO Class 7 cleanroom conditions
• Sterilizable by autoclave, CIP and SIP
• Suitable for vacuum service
• Operating temperature range: -80°C to +180°C
• Customizable outer color coding to prevent cross‑contamination
• Odorless and tasteless, suitable for hygienic transfers

Standard sizes available

• 0613WP — 6 x 13 mm (ID x OD) — 1/4 in ID — Max WP 18.5 bar @27°C — Min burst 38 bar @27°C — Bend radius 60 mm — Vacuum 760 mmHg
• 0916WP — 9 x 16 mm — 11/32 in ID — Max WP 18.0 bar — Min burst 38 bar — Bend radius 70 mm — Vacuum 760 mmHg
• 1220WP — 12 x 20 mm — 1/2 in ID — Max WP 16.0 bar — Min burst 34.0 bar — Bend radius 80 mm — Vacuum 760 mmHg
• 1624WP — 16 x 24 mm — 5/8 in ID — Max WP 14.0 bar — Min burst 34.0 bar — Bend radius 90 mm — Vacuum 760 mmHg
• 1927WP — 19 x 27 mm — 3/4 in ID — Max WP 12.0 bar — Min burst 34.0 bar — Bend radius 100 mm — Vacuum 760 mmHg
• 2535WP — 25 x 35 mm — 1 in ID — Max WP 10.5 bar — Min burst 32.0 bar — Bend radius 120 mm — Vacuum 760 mmHg
• 3242WP — 32 x 42 mm — 1 1/4 in ID — Max WP 10.0 bar — Min burst 32.0 bar — Bend radius 180 mm — Vacuum 500 mmHg
• 3850WP — 38 x 50 mm — 1 1/2 in ID — Max WP 10.0 bar — Min burst 30.0 bar — Bend radius 220 mm — Vacuum 400 mmHg
• 5062WP — 50 x 62 mm — 2 in ID — Max WP 8.0 bar — Min burst 24.0 bar — Bend radius 300 mm — Vacuum 300 mmHg
• 6476WP — 64 x 76 mm — 2 1/2 in ID — Max WP 6.0 bar — Min burst 18.0 bar — Bend radius C/P — Vacuum C/P
• 7587WP — 75 x 87 mm — 3 in ID — Max WP 5.0 bar — Min burst 15.0 bar — Bend radius C/P — Vacuum C/P
• 100112WP — 100 x 112 mm — 4 in ID — Max WP 5.0 bar — Min burst 15.0 bar — Bend radius C/P — Vacuum C/P

Technical specifications

• Model / trade name: Imawrap®
• Material: platinum‑cured silicone inner liner and outer cover
• Reinforcement: 4‑ply polyester fabric with SS 316 helical wire
• Inner liner: extractables tested (TOXIKON E&L studies)
• Manufacturing environment: ISO Class 7 cleanroom
• Available end fittings: SS 316L tri‑clamp, BSP and other standard fittings on request
• Outer layer: available color coding to reduce cross‑contamination risk
• Sterilization: compatible with autoclave, CIP and SIP procedures
• Temperature range: -80°C to +180°C
• Suitable for vacuum and high‑pressure liquid transfer
• Compliance: NSF 51, US FDA 21 CFR 177.2600, USP Class VI, ISO 10993, European Pharmacopoeia 3.1.9
• RoHS compliant; free of restricted heavy metals, phthalates, bisphenol and volatile plasticizers
• Applications: biopharma, pharmaceuticals, bioreactors, food, beverage, cosmetics and vacuum transfer operations
