Biopharmaceutical connector TC

for the pharmaceutical industryautoclavablepolypropylene

Product overview

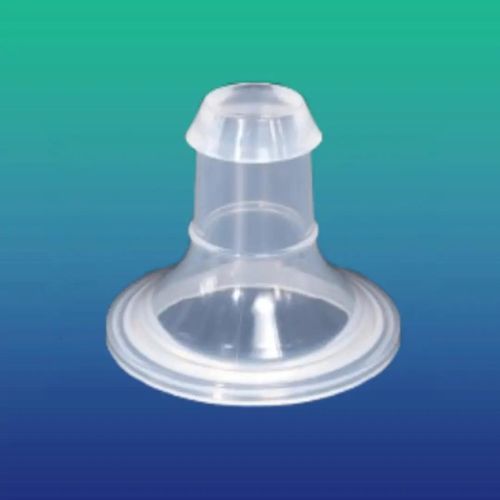

Cleanroom-molded Triclamp (TC) sanitary connector/reducer PP-TC series for single-use fluid paths in biotechnology and pharmaceutical processing. Manufactured in cleanrooms under an ISO 9001 quality management system; designed for compatibility with common TC fittings and standard tubing IDs.

Standard size available
Part No. | Triclover Size | Tube Size (Inch) | Tube Size (MM)

• PP-TC-0.75-1.25HB | 3/4" TC | 1/8" | 3.17
• PP-TC-0.75-0.25HB | 3/4" TC | 1/4" | 6.35
• PP-TC-0.75-0.37HB | 3/4" TC | 3/8" | 9.52
• PP-TC-0.75-0.75HB | 3/4" TC | 3/4" | 19.05
• PP-TC-0.75-0.50HB | 3/4" TC | 1/2" | 12.70
• PP-TC-1.50-0.50HB | 1.5" TC | 1/2" | 12.70
• PP-TC-1.50-0.75HB | 1.5" TC | 3/4" | 19.05
• PP-TC-1.50-0.25HB | 1.5" TC | 1/4" | 6.35
• PP-TC-1.50-0.37HB | 1.5" TC | 3/8" | 9.52
• PP-TC-1.50-1.00HB | 1.5" TC | 1" | 25.4
• PP-TC-1.00-0.50HB | 1" TC | 1/2" | 12.7
• PP-TC-2.50-0.50HB | 2.5" TC | 1/2" | 12.7
• PP-TC-2.50-0.75HB | 2.5" TC | 3/4" | 19.07

Applications

• Single-use assemblies for bioprocessing and pharmaceutical fluid handling
• Connection/reduction between Triclamp fittings and tubing of different IDs
• Integration into disposable manifolds, tubing sets and single-use systems

Certifications

• FDA 21 CFR 177.1520 (food contact material reference)
• USP <88> Biological reactivity tests, In Vivo
• USP <87> Biological reactivity tests, In Vitro
• Extractables study available

Advantages

• Aseptic Triclamp connection compatible with common sanitary fittings
• Enables process efficiency through single-use disposable integration
• Multiple size options reduce inventory complexity

Regulatory compliance declaration

• REACH
• RoHS
• TSE/BSE statement
• Melamine free
• Phthalates free
• Bisphenol A free

Technical specification

• Material of construction (MOC): Polypropylene
• Compatible sterilization: Autoclave up to 135°C for max 30 minutes; gamma irradiation up to 50 kGy
• Storage: Keep in original packaging where possible; store in a cool, dry place away from direct sunlight and aggressive chemicals. Normal warehouse conditions 5°C–40°C.

Characteristics / Technical specifications

• Product type: Cleanroom-molded Triclamp (TC) sanitary connector / reducer for single-use fluid paths
• Material: Polypropylene (suitable for bio/pharma single-use applications)
• Available part numbers cover TC sizes 3/4", 1", 1.5", 2.5" with tube ID options from 1/8" up to 1" (see Standard size available)
• Sterilization compatibility: Autoclave (max 135°C, 30 min) and gamma irradiation (up to 50 kGy)
• Regulatory/biocompatibility: Conforms to FDA 21 CFR 177.1520 and referenced USP biological reactivity tests; extractables data available on request
• Intended use: Single-use assemblies for bioprocessing and pharmaceutical fluid handling
• Storage recommendation: Keep in original packaging; recommended storage 5°C–40°C, away from sunlight and contaminants
