Aspiration needle

sterile

Product Overview

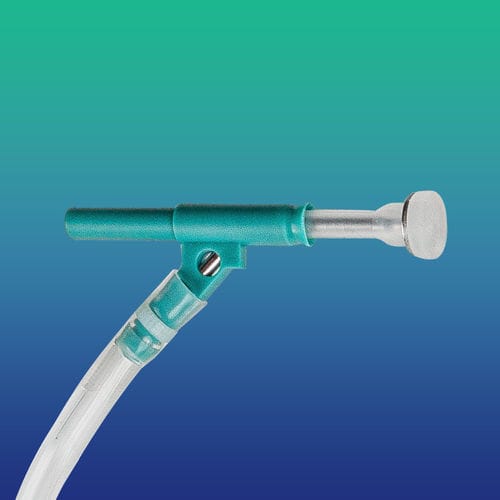

Sampling needle designed for biopharma sampling of single-use sampling system bags. Closed design enables aseptic transfer and reduces contamination risk. Supplied presterilized for single-use and compatible with a range of process fluids and solutions.

Materials / Size Available

• Needle: Stainless steel
• Plug / Sleeve: Platinum-cured silicone
• Body: Polypropylene
• Needle hole sizes: 1 mm, 2 mm

Inserting Procedure

• Step 1: Rotate the check nut on the back of the sleeve counter-clockwise to open the front TC portion of the sampling port adapter.
• Step 2: Detach the front TC portion of the sampling port adapter from the sleeve.
• Step 3: Insert the sampling port into the grooves provided in the sleeve.
• Step 4: Attach the stainless-steel sanitary flange to the sleeve.

Certifications

• USP Class VI
• USP <85> Bacterial Endotoxins - LAL test
• USP <661.1> Extractable metals
• USP <788> Sub-visible particulate matter

Features and Benefits

• Closed, easy-to-use sampling system
• Reduces risk of contamination during sampling
• Presterilized for single-use; no cleaning or sterilization between samples required
• Available with 1 mm or 2 mm needle bore

Technical specifications

• Application: Sampling for biopharma; compatible with single-use sampling system bags
• Needle material: Stainless steel
• Plug / Sleeve material: Platinum-cured silicone
• Body material: Polypropylene
• Needle hole sizes: 1 mm, 2 mm
• Sterilization: Supplied presterilized (single-use)
• Design: Closed sampling needle to reduce contamination risk and enable aseptic sampling
• Compliance: Meets USP Class VI and tests for endotoxins, extractable metals and sub-visible particulates as listed above
