Biological sample bag 2D series

mixinglaboratoryfor bioreactor

Description

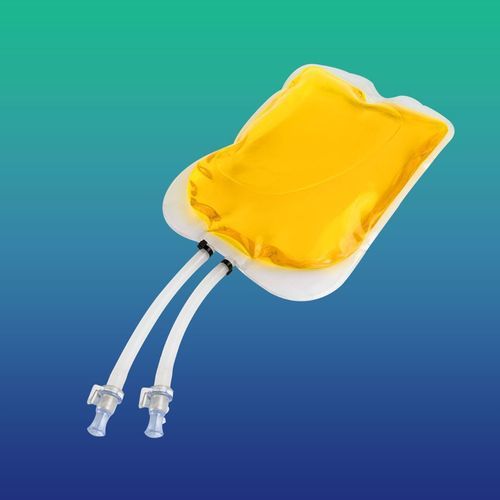

2D single-use bags are designed for small to mid-volume fluid handling (typically up to 50 L). They are commonly used laid flat (e.g., rocking bags) or hung by top insert holes; support rods or frames can be used to maintain shape during handling. These assemblies serve mixing, transfer, storage and transport needs in bioprocess workflows.

Standard Sizes Available

• Single-use (2D or 3D) bag assemblies are offered in multiple capacities from 50 ml to 50 L with configurable port options to match process requirements.

Application

• Biotechnology and bioprocessing
• High oxygen barrier fluid containment

Compliance and Certification

• ISO 10993-4 Hemolysis
• ISO 10993-5 Cytotoxicity
• ISO 10993-6 Implantation test
• ISO 10993-10 Irritation and Sensitization tests
• ISO 10993-11 Acute Systemic Toxicity test
• USP <85> Bacterial Endotoxins – LAL test
• USP <87> Biological Reactivity Test in Vitro
• USP <88> Biological reactivity testing, in vivo, class VI
• European Pharmacopoeia tests 3.1.5
• USP <661.1> Polyethylene Physicochemical Tests, Extractable Metals
• Plastic additives screening and documentation

Characteristics

• Multi-layer construction with inert polyethylene (PE) fluid contact layer
• Designed for low extractables and leachables
• No animal‑derived components in fluid contact materials

Available Sizes and Catalogue Details

• Available nominal volumes: 50 ml, 250 ml, 500 ml, 1 L, 2 L, 5 L, 10 L, 20 L, 50 L.
• Port materials and types: PCS and TPE tubing; 1/8" luer locks, 1/4" luer, 3/8" inserts, AseptiQuick G options, and end plugs.
• Example catalogue ranges by size: 2D-050M-0201 to 2D-050M-0212 (50 ml); 2D-250M-0201 to 2D-250M-0212 (250 ml); 2D-500M-0201 to 2D-500M-0306 (500 ml variations); 2D-001L-0201 to 2D-001L-0212 (1 L); 2D-002L-0301 to 2D-002L-0309 (2 L); 2D-005L-0301 to 2D-005L-0310 (5 L); 2D-010L-0301 to 2D-010L-0310 (10 L); 2D-020L-0301 to 2D-020L-0310 (20 L); 2D-050L-0301 to 2D-050L-0310 (50 L).
• Contact supplier for full catalogue drawings and port-by-port drawings (e.g., 2D-Bag-50L-Drawing.jpg).

Technical specifications

• Product family: 2D single-use bag assemblies with multiple sizes and port configurations
• Fluid contact layer: inert polyethylene (PE)
• Available tube materials: PCS and TPE; port options include 1/8" luer locks, 1/4" luer, 3/8" inserts, AseptiQuick G and end plugs
• Construction: multi-layer for reduced extractables/leachables
• Bioburden profile: no animal-derived components in contact layer
• Regulatory testing: ISO 10993 series, USP <85>, <87>, <88>, European Pharmacopoeia 3.1.5, USP <661.1> and related testing per customer requirements
