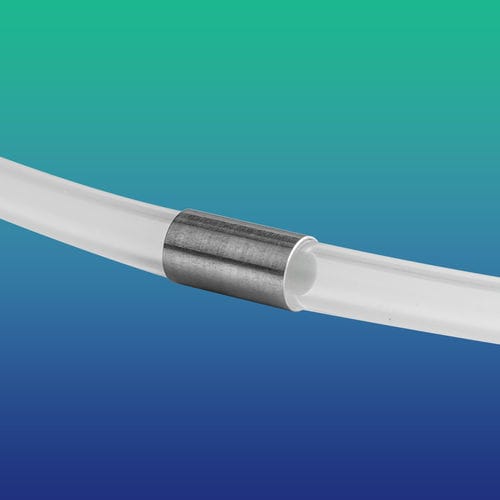

Biopharmaceutical connector Aseptic Bush

for the pharmaceutical industrydisposable

Product Overview
Sealing solutions for bioprocess applications. The aseptic bush CP series is engineered for single-use bioprocessing standards. Manufactured from biocompatible materials, it provides a secure crimp-seal for sampling and transfer lines in pharmaceutical and biopharmaceutical production. The crimping design produces a leak-proof connection without complex tools, reducing contamination risk and simplifying installation. Available in multiple catalogue sizes to ensure compatibility with a wide range of single-use components. Produced under quality certification with sustainability considerations.

Applications

• Sampling manifold systems
• Sampling bags
• Sampling fluid transfer lines

Features / Benefits

• Leak-proof crimping design
• Reduced contamination risk during connection
• Functions as a disconnect/closure

Standard Size Available
Catalogue no | Tube OD | Aseptic bush (ID) | Aseptic bush (OD) | Length of Aseptic bush (mm)
CP-0.300-0.530 | 5.3 mm | 5.4 mm | 6.4 mm | 20 mm
CP-0.125-0.250 | 6.35 mm | 6.7 mm | 7.7 mm | 20 mm
CP-0.250-0.375 | 9.5 mm | 9.8 mm | 10.8 mm | 20 mm
CP-0.125-0.437 | 11.11 mm | 11.5 mm | 12.5 mm | 30 mm
CP-0.125-0.500 | 12.7 mm | 13 mm | 14 mm | 40 mm
CP-0.375-0.625 | 15.8 mm | 16.1 mm | 17.1 mm | 45.1 mm

Characteristics / Technical specifications

• Maintains product sterility in non-aseptic environments
• Applicable to multiple tubing types and sizes
• Improves reliability for biopharma production
• Biocompatible materials suitable for single-use systems
• Crimping design provides a secure, leak-proof seal without complex tools
• Compatible with a wide spectrum of single-use components
• Available in multiple catalogue sizes (see Standard Size Available above)
• Manufactured under quality certification with sustainability considerations
