Vaccine refrigerator TCW 3043 SDD
robustcorrosion-resistantwith direct cooling

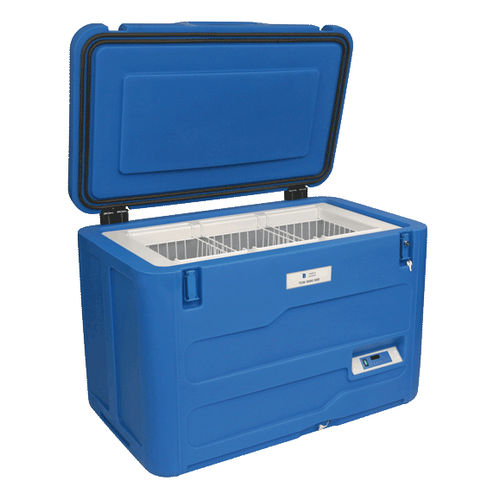

Vaccine refrigerator - TCW 3043 SDD - B Medical Systems - robust / corrosion-resistant / with direct cooling
Vaccine refrigerator - TCW 3043 SDD - B Medical Systems - robust / corrosion-resistant / with direct cooling
Vaccine refrigerator - TCW 3043 SDD - B Medical Systems - robust / corrosion-resistant / with direct cooling - image - 2
Vaccine refrigerator - TCW 3043 SDD - B Medical Systems - robust / corrosion-resistant / with direct cooling - image - 3
Vaccine refrigerator - TCW 3043 SDD - B Medical Systems - robust / corrosion-resistant / with direct cooling - image - 4
Add to favorites
Compare this product
Go to the B Medical Systems website for more information

Characteristics

Applications
for vaccines
Protection level
robust, corrosion-resistant
Cooling system
with direct cooling
Power source
solar-powered
Other characteristics
with natural refrigerant, low energy consumption
Capacity

Max.: 111 l
(29.32 gal)

Min.: 111 l
(29.32 gal)

Temperature range

Max.: 5 °C
(41 °F)

Min.: 5 °C
(41 °F)

Width

Max.: 1,270 mm
(50 in)

Min.: 1,270 mm
(50 in)

Depth

Max.: 78 cm
(31 in)

Min.: 78 cm
(31 in)

Height

Max.: 91 cm
(35.8 in)

Min.: 91 cm
(35.8 in)

Weight

142 kg
(313.1 lb)

Description

Description
Solar Direct Drive Vaccine Refrigerator with 111 L | 3.92 cu ft gross volume.

Key features
  • Set temperature: +5°C
  • Vaccine storage capacity: 89 L
  • Certifications: EMC directive 2014/30/EU | EU MDD Class I | Low voltage 2014/35/EU
  • Freeze protection level: Grade A
  • Climate class (ambient temperature range): Hot zone (+43°C)
  • Energy source: Solar / DC

Resistance to harsh environment
  • Designed to operate in tropical conditions (32°C to 43°C depending on the model)
  • Rotomoulded body construction: rust free and extremely robust
  • Humidity control: no condensation issues in the fridge
  • Best-in-class warranty: 10 years of international manufacturer’s warranty, and lifetime warranty against corrosion

Ergonomic Design
  • Door gaskets are easily replaceable and washable
  • “Plug and play” installation of the solar generators
  • No battery, no regulator: easy maintenance and no hidden costs
  • External temperature display and real-time visualization on the web

Safety and traceability
  • Strong insulation: extended holdover time in the event of minimal or no sunlight
  • Silicone gaskets and lockable clasps: tight closing and restricted access
  • Audio-visual alarm system with remote transmission
  • Remote temperature monitoring solution, comprising a data logger and a digital platform

Technical specifications
  • Gross volume: 111 L | 3.92 cu ft
  • Vaccine storage capacity: 89 L
  • Set temperature: +5°C
  • Climate class (ambient temperature range): Hot zone (+43°C)
  • Certifications: EMC directive 2014/30/EU | EU MDD Class I | Low voltage 2014/35/EU
  • External dimensions (HxWxD): 910 x 1270 x 780 mm | 35.83 x 50.00 x 30.71 in
  • Net weight: 142 kg
  • Shipping weight: 171 kg
  • Supply voltage: 25V DC
  • Refrigerant type: Natural R600a
  • Materials: Polyethylene
  • Remote monitoring: RTMD included
  • Autonomy: 116h 41min
  • Cool down: 145h
  • Hold over time: 124h48 min at +43°C
  • Energy consumption /24h (stable running): 0.68 kWh/24h at 43°C
  • Energy source: Solar / DC
  • Freeze protection level: Grade A
  • Product type: Solar Direct Drive Vaccine Refrigerator
