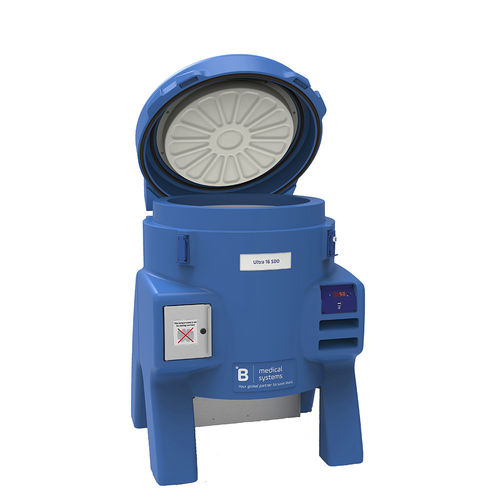

Vaccine refrigerator Ultra 16 SDD

upright1-doorrobust

Overview

Solar Direct Drive vaccine refrigerator with 24.5 L gross volume, designed for cold chain storage of vaccines in off‑grid and challenging environments.

Main features

• Set temperature: +5°C
• Vaccine storage capacity: 16 L
• Certifications: EMC directive 2014/30/EU | EU MDD Class I | Low voltage 2014/35/EU
• Freeze protection level: Grade A
• Climate class (ambient temperature range): Hot zone (+43°C)
• Energy source: Solar / DC (no battery required)

Resistance to harsh environment

• World's longest autonomy: over 1 month
• Designed to operate in tropical conditions (32°C to 43°C depending on the model)
• Rotomoulded polyethylene body: rust free and extremely robust
• Humidity control: no condensation issues inside the cabinet
• Manufacturer warranty: 10 years international warranty and lifetime corrosion warranty

Ergonomic Design

• Replaceable and washable door gaskets for easy maintenance
• “Plug and play” solar generator installation for field deployment
• No battery and no regulator required: simplified maintenance and predictable operational costs
• External temperature display and real-time monitoring via web interface

Safety and traceability

• High-performance insulation: extended holdover time during low or no sunlight
• Silicone gaskets and lockable clasps: secure closure and controlled access
• Audio-visual alarm system with remote transmission
• Remote temperature monitoring solution included (data logger and digital platform – RTMD)

Product details (table)
Gross volume: 24.5 L
Vaccine storage capacity: 16 L
Set temperature: +5°C
Climate class (ambient temperature range): Hot zone (+43°C)
Certifications: EMC directive 2014/30/EU | EU MDD Class I | Low voltage 2014/35/EU
External dimensions (HxWxD): 1120 x 840 x 780 mm
Internal dimensions (HxWxD): 430 x 240 x 240 mm
Net weight: 145 kg | 319.67 lb
Shipping weight: 196 kg
Supply voltage: 25 V DC
Refrigerant type: Natural R600a
Materials: Polyethylene
Remote monitoring: RTMD included
Autonomy: 477 h 56 min
Cool down time: 312 h
Energy consumption (stable running / 24 h): 0.34 kWh/24 h at 43°C
Energy source: Solar / DC
Freeze protection level: Grade A
Product type: Solar Direct Drive Vaccine Refrigerator

Technical specifications

• Gross volume: 24.5 L
• Vaccine storage capacity: 16 L
• Set temperature: +5°C
• Climate class (ambient temperature range): Hot zone (+43°C)
• Certifications: EMC directive 2014/30/EU | EU MDD Class I | Low voltage 2014/35/EU
• External dimensions (HxWxD): 1120 x 840 x 780 mm
• Internal dimensions (HxWxD): 430 x 240 x 240 mm
• Net weight: 145 kg
• Shipping weight: 196 kg
• Supply voltage: 25 V DC
• Refrigerant: Natural R600a
• Materials: Polyethylene
• Remote monitoring: RTMD included
• Autonomy: 477 h 56 min
• Cool down time: 312 h
• Energy consumption (stable running / 24 h): 0.34 kWh/24 h at 43°C
• Energy source: Solar / DC
• Freeze protection level: Grade A
• Product type: Solar Direct Drive Vaccine Refrigerator
