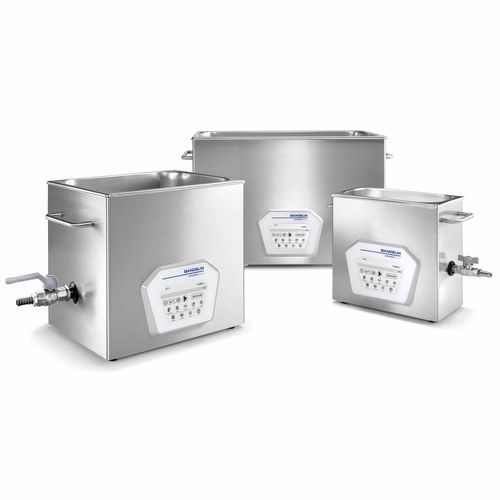

Ultrasonic laboratory bath SONOREX smart ST series

medicalwith touchscreenprogrammable

Overview
The SONOREX smart ST is a benchtop ultrasonic cleaner designed for laboratory and light‑industrial applications. It pairs proven ultrasonic cleaning technology with an intuitive hygienic touchscreen, integrated temperature monitoring and comprehensive process documentation to ensure reproducible cleaning cycles.

Key features

• Hygienic touchscreen with clear operating status and multilingual interface
• Integrated temperature display and monitoring for process control and sample protection
• Process logging and ability to save/retrieve up to 10 individual programmes
• Robust stainless steel housing with drip-water protection (IP32)
• Acoustic feedback and help menu for user guidance

Operation & user convenience

• Central start button and clear display elements for quick overview
• Save up to 10 custom programmes for reproducible sequences
• Stepless time setting from 1 minute to 8 hours
• Power adjustable from 10% to 100%
• Safety shutdown after 12 hours without input
• Acoustic signals for programme steps and notes
• Built-in dosing calculator for cleaning preparations

Cleaning performance & modes

• SweepTec for continuous sound-field oscillation for even, gentle cleaning
• Pulse mode for enhanced effect on heavy soiling
• Degassing mode for fast and thorough degassing of liquids and samples
• Additional modes: Sweep, Interval, Eco (energy-saving), DEGAS

Accessories & periphery (examples)

• Optional docking station with USB‑A, USB‑B and Ethernet for export of process logs
• Range of baskets and lids optimised for cavitation positioning
• LABOCOOL laboratory cooler for sample cooling during sonication
• Cleaning and disinfection concentrates formulated for ultrasonic use

Available models (at a glance)
Model | Internal dimensions (mm) | Price (EUR)
SONOREX smart ST 102 H | 240 x 140 x 100 | 1.458,00 €
SONOREX smart ST 103 H | 240 x 140 x 150 | 1.519,00 €
SONOREX smart ST 255 H | 300 x 150 x 150 | 1.690,00 €
SONOREX smart ST 156 BH | 500 x 140 x 150 | 2.065,00 €
SONOREX smart ST 510 H | 300 x 240 x 150 | 1.892,00 €
SONOREX smart ST 514 H | 325 x 300 x 150 | 2.609,00 €
SONOREX smart ST 514 BH | 325 x 300 x 200 | 2.625,00 €
SONOREX smart ST 1028 H | 500 x 300 x 200 | 3.397,00 €
SONOREX smart ST 170 H | 1000 x 200 x 200 | 5.471,00 €
SONOREX smart ST 1028 CH | 500 x 300 x 300 | 4.476,00 €
SONOREX smart ST 1050 CH | 600 x 500 x 300 | 6.637,00 €

Notes
Models are available in different sizes and power outputs to suit specific applications. Where applicable the series is classified as Medical device class I.

Technical specifications

• Series: SONOREX smart ST
• User interface: Hygienic touchscreen, multilingual, help menu, acoustic feedback
• Programme memory: Up to 10 individual programmes
• Time setting: Stepless, 1 min – 8 h
• Modes: DEGAS, SweepTec, Interval, Eco, Pulse
• Power setting: Infinitely adjustable from 10% to 100%
• Temperature: Integrated display and monitoring
• Process documentation: Integrated logging, export via docking station (USB‑A, USB‑B, Ethernet)
• Protection: Drip-water protection IP32; permanently connected mains cable
• Housing: Stainless steel, easy to clean
• Safety: Automatic shutdown after 12 hours without input
• Special functions: Dosing calculator for cleaning preparations
• Accessories: Baskets, lids, booster horns, LABOCOOL cooler, cleaning & disinfection concentrates, docking station
