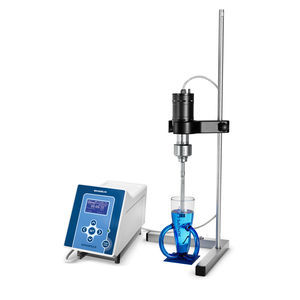

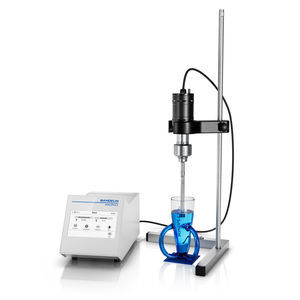

Ultrasonic homogenizer SONOPULS HD 4400

benchtopintegratedsample preparation

Description
Ultrasonic homogeniser for sample volumes from 100 to 3000 ml. Suitable for laboratory and research applications requiring controlled sonication with a ready-to-use equipment set.

Ready-to-use basic equipment

• Ultrasonic generator GM 4400
• Ultrasonic transducer UW 400
• Step horn SH 400 G
• Titanium sonotrode TS 425, Ø 25 mm
• Includes tools for mounting the probes

Main features
Amplitude control from 10 to 100 % with actual-value display; pulsation control; AMPLICHRON® circuit to maintain constant amplitude under changing load; integrated timer; remote control interface. Large display with programme memory for repeatable processes and flexible application range for 100–3000 ml.

Areas of application

• Cell, bacteria, virus and tissue disruption
• Production of fine emulsions
• Homogenisation of suspensions and dispersions
• Degassing of liquids
• Sample preparation for particle size analysis
• Acceleration of chemical reactions

Product details (table)
Weight: 8.3 kg
Order number: 4400
Sonication volume [ml]: 500-2000 (application range 100-3000 ml)
Nominal ultrasonic power [W]: 400
Ultrasonic frequency [kHz]: 20
Sonotrode diameter [mm]: 25
Probe length [mm]: 130
Time setting [min]: 99 h: 59 min: 59 s or continuous operation
Pulsation times: Working intervals 0.2-600 s; Rest intervals 0.3-600 s
Connection step horn: M 16
Energy display: in kJ
Operating voltage [V]: 230 V~ (± 10 %), 50/60 Hz
Outer dimension L [mm]: 150
External dimension B [mm]: 220
Outer dimension H [mm]: 335
Ready to use set: yes
Packaging L [mm]: 355
Packaging B [mm]: 255
Packaging H [mm]: 315

Technical specifications

• Nominal ultrasonic power: 400 W
• Ultrasonic frequency: 20 kHz
• Sonication volume: 500 - 2000 ml (application range 100 - 3000 ml)
• Sonotrode diameter: 25 mm
• Probe length: 130 mm
• Amplitude control: 10 - 100 % with actual value display and AMPLICHRON®
• Pulsation: working intervals 0.2 - 600 s; rest intervals 0.3 - 600 s
• Timer: integrated; time setting up to 99 h 59 min 59 s or continuous
• Energy display: in kJ
• Operating voltage: 230 V~ (± 10 %), 50/60 Hz
• Dimensions (L x B x H): 150 x 220 x 335 mm
• Weight: 8.3 kg
• Ready-to-use set includes generator, transducer, step horn and titanium sonotrode
