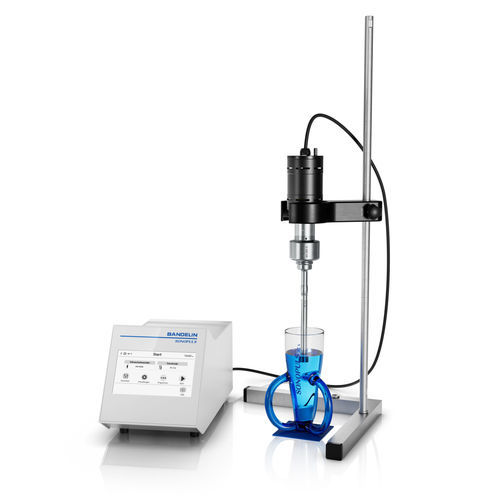

Ultrasonic homogenizer SONOPULS HD 5200

benchtopindustrialsample preparation

Description
Compact ultrasonic homogeniser for sample volumes from 5 to 1000 ml, suitable for cell disruption, emulsification and degassing in laboratory and industrial R&D applications.

Included components

• Ultrasonic generator GM 5200
• Ultrasonic transducer UW 5200
• Sonotrode TS 113, Ø 13 mm (for volumes 20–900 ml)
• Booster horn SH 200 G
• Tools for mounting probes included

Main functions / features

• Amplitude control from 10 to 100% with real-time display
• Programmable pulsing (work/rest cycles)
• AMPLICHRON® circuit ensures constant amplitude regardless of load
• Integrated timer
• Remote control capability
• Large, clear display
• Program memory for repeatable processes

Areas of application

• Cell, bacteria, virus and tissue disruption
• Preparation of fine emulsions
• Sample homogenisation
• Liquid degassing
• Sample preparation for particle size analysis
• Acceleration of chemical reactions

Technical characteristics / specifications

• Sonication volume: 5–1000 ml
• Nominal ultrasonic power: 200 W
• Power setting: up to 200 W
• Ultrasonic frequency: 20 ± 0.5 kHz
• Sonotrode diameter: 13 mm
• Probe length: 130 mm
• Time setting: up to 9 h 59 min 59 s or continuous
• Pulsation times: working 0.5–600 s; rest 0.3–600 s
• Energy display: Ws
• Heat output: 200 W
• Operating voltage: 230 V~ (±10%), 50/60 Hz
• Ready-to-use set: yes
• Weight: 6.5 kg
• Order number: 15200
• CE conformity: Low Voltage Directive 2014/35/EU; EMC Directive 2014/30/EU; RoHS Directive 2011/65/EU
• Packaging dimensions (L x W x H): 495 mm x 280 mm x 365 mm
