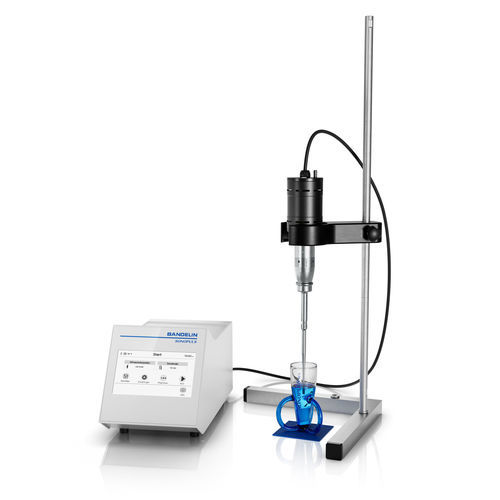

Ultrasonic homogenizer SONOPULS HD 5100

benchtopintegratedlaboratory

Description
The SONOPULS HD 5100 is an ultrasonic laboratory homogeniser for sample volumes from 2–200 ml. It delivers a nominal ultrasonic power of 100 W at approx. 20 kHz and features amplitude control with actual value display, pulsation mode and integrated timer for precise process control.

Contents of the ready-to-use set

• Ultrasonic generator GM 5200
• Ultrasonic transducer UW 5100
• Sonotrode TS 103, Ø 3 mm (for volumes 3–50 ml)
• Booster horn SH 100 G
• Tools for mounting the probes

Main features

• Amplitude control 10–100 % with actual value display
• AMPLICHRON® circuit to maintain constant amplitude under changing load
• Pulsation mode with adjustable work/rest intervals
• Integrated timer and continuous operation option
• Remote control capability and energy display in Ws

Areas of application

• Cell, bacteria and virus disruption (cell disruption)
• Production of fine emulsions and dispersions
• Homogenising of liquid and semiliquid samples
• Degassing of liquids
• Sample preparation for particle size analysis
• Acceleration of chemical reactions

Additional information (product attributes)
Weight: 6.5 kg
Order number: 15100
Sonication volume [ml]: 2–200
Nominal ultrasonic power [W]: 100
Ultrasonic frequency [kHz]: 20 ± 0.5
Sonotrode diameter [mm]: 3
Probe length [mm]: 147
Time setting [min]: up to 9 h 59 min 59 s or continuous operation
Pulsation times: working intervals 0.5–600 s; rest intervals 0.3–600 s
Energy display: Ws
Heat output [W]: 100
Operating voltage [V]: 230 V~ (±10 %), 50/60 Hz
Ready to use set: yes
CE conformity: Low Voltage Directive 2014/35/EU; EMC Directive 2014/30/EU; RoHS Directive 2011/65/EU
Packaging L [mm]: 495
Packaging B [mm]: 280
Packaging H [mm]: 365

Technical specifications

• Model: SONOPULS HD 5100
• Nominal ultrasonic power: 100 W
• Ultrasonic frequency: 20 ± 0.5 kHz
• Sonication volume: 2–200 ml (TS 103 supplied for 3–50 ml)
• Sonotrode diameter: 3 mm (TS 103)
• Probe length: 147 mm
• Amplitude control: 10–100 % with actual value display
• Pulsation: work intervals 0.5–600 s; rest intervals 0.3–600 s
• Timer: up to 9 h 59 min 59 s or continuous
• Energy display: Ws
• Heat output: 100 W
• Operating voltage: 230 V~ (±10 %), 50/60 Hz
• Weight: 6.5 kg
• CE conformity: Low Voltage, EMC and RoHS Directives
• Included: GM 5200 generator, UW 5100 transducer, TS 103 sonotrode, SH 100 G booster horn, mounting tools
