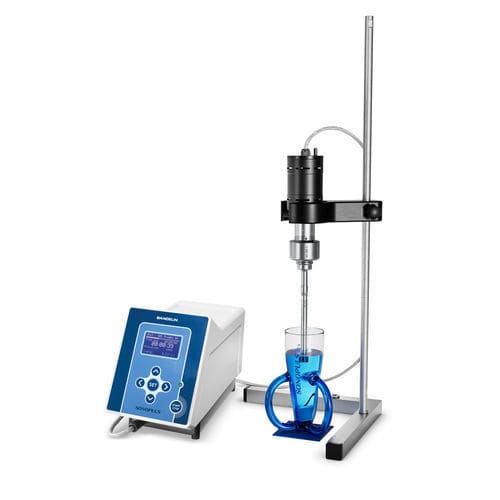

Ultrasonic homogenizer SONOPULS HD 4200

benchtopsample preparationfor cell disruption

Overview
Bench-top ultrasonic homogeniser for sample volumes from 5 to 1000 ml, recommended operating range for the ready-to-use set 20–900 ml. Designed for cell disruption, emulsification, degassing and sample preparation for analysis.

Ready-to-use basic equipment (set)

• Ultrasonic generator GM 4200
• Ultrasonic transducer UW 200
• Step horn SH 200 G
• Titanium sonotrode TS 113, Ø 13 mm (for volumes 20 - 900 ml)
• Including tools for mounting the probes

Main features / Properties

• Amplitude control 10 to 100 % with actual value display
• Pulsation function (programmable working and rest intervals)
• AMPLICHRON® circuit (constant amplitude independent of changing conditions)
• Integrated timer (time setting up to 99 h:59 min:59 s or continuous operation)
• Energy display in kJ
• Remote controllable
• Large display
• Programme memory
• All units have CE marking
• Flexible application possibilities for volumes from 5–1000 ml (device recommended for 20–900 ml as set)

Fields of application

• Disruption of cells, bacteria, viruses and tissue (cell disruption)
• Production of fine emulsions
• Homogenising suspensions and dispersions
• Degassing of liquids
• Sample preparation for particle size analysis
• Acceleration of chemical reactions

Available probes
Available probe diameters: 3 / 4.5 / 6 / 9 / 13 / 16 / 19 / 25 mm

Technical specifications

• Weight: 6.5 kg
• Order number: 4200
• Sonication volume [ml]: 20-900
• Nominal ultrasonic power [W]: 200
• Ultrasonic frequency [kHz]: 20
• Sonotrode diameter [mm]: 13
• Probe length [mm]: 130
• Time setting: up to 99 h:59 min:59 s or continuous operation
• Pulsation times: Working intervals 0.2-600 s; Rest intervals 0.3-600 s
• Connection step horn: M10
• Energy display: in kJ
• Operating voltage [V]: 230 V~ (±10 %), 50/60 Hz
• Outer dimensions L x B x H [mm]: 150 x 220 x 335
• Ready to use set: yes
• Packaging L x B x H [mm]: 570 x 270 x 515
