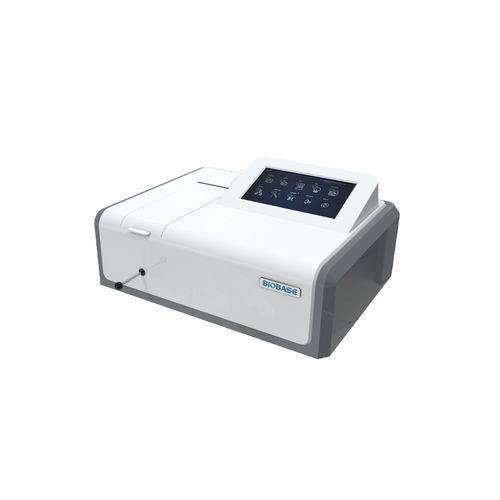

UV-vis spectrophotometer UV-1100

UV-Vis-NIRUVVIS

Overview
Standalone UV/Vis spectrophotometer with a 10.1-inch full-color touch screen, single-beam optical system and 190–1100 nm wavelength range. Suitable for laboratory quantitative and qualitative analysis, including nucleic acid and protein concentration checks.

Product Details
Brand: BIOBASE
Product origin: CHINA
Delivery time: Within 7 days
Supply capacity: Factory direct supply
Model: UV-1100

Features

• 10.1-inch full-color touch screen for direct display of scan curves and spectra without a PC.
• USB and Bluetooth support for wired and wireless data storage; one-click screenshot export of data images.
• Equipped with an A6 high-performance processor; optional mouse and keyboard support.
• Nucleic acid and protein concentration measurement for rapid assessment of extraction purity.
• Qualitative and quantitative analysis modes for unknown substances and known sample concentrations.

Technical Parameters
Model: UV-1100
Display: 10.1-inch LCD touch screen
Optical System: Single beam
Light Source: Deuterium lamp and tungsten lamp
Wavelength Range: 190 nm–1100 nm
Stray Light: 0.05% (220 nm)
Spectral Bandwidth: 2 nm
Wavelength Accuracy: 0.3 nm (full); 0.1 nm at 656.1 nm
Wavelength Repeatability: 0.1 nm
Transmittance Accuracy: 0.3%T
Photometric Modes: Transmittance, Absorbance, Concentration, Energy
Interface: RS-232, USB; Bluetooth and USB storage supported
Standard Accessories: 4 × 10 mm glass cuvettes, 2 × 10 mm quartz cuvettes
Optional Accessory: Printer
Power Consumption: 160 W
Power Supply: AC 220 V, 50/60 Hz (standard); 110 V (optional)
External Dimensions (W×D×H): 562 × 520 × 260 mm
Package Size (W×D×H): 650 × 620 × 380 mm
Net Weight: 21 kg
Gross Weight: 28 kg

Specifications

• Model: UV-1100
• Display: 10.1-inch LCD touch screen
• Optical System: Single beam
• Light Source: Deuterium + Tungsten
• Wavelength Range: 190–1100 nm
• Stray Light: 0.05% @ 220 nm
• Spectral Bandwidth: 2 nm
• Wavelength Accuracy: 0.3 nm (full), 0.1 nm @ 656.1 nm
• Wavelength Repeatability: 0.1 nm
• Transmittance Accuracy: 0.3%T
• Modes: %T, Absorbance, Concentration, Energy
• Interfaces: RS-232, USB; USB stick and Bluetooth supported
• Standard Accessories: 4×10 mm glass cuvettes, 2×10 mm quartz cuvettes
• Optional: Printer
• Power: 160 W
• Dimensions: 562×520×260 mm
• Net Weight: 21 kg; Gross Weight: 28 kg
