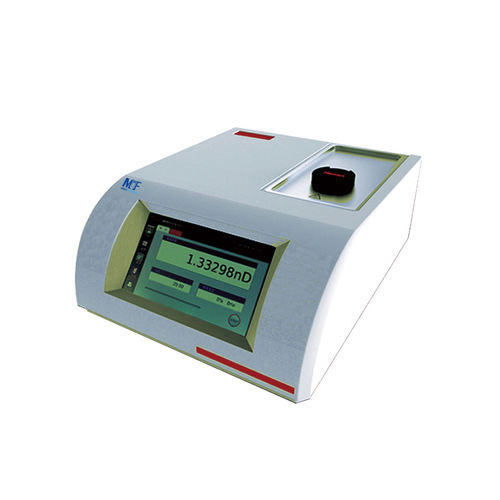

Digital refractometer BK-R670

for the food industrylaboratoryfor the pharmaceutical industry

Introduction
The BIOBASE BK-R670 is an automatic laboratory refractometer for precise measurement of refractive index and Brix. It integrates a high-performance CCD photosensitive module and dedicated signal acquisition and processing to deliver reproducible results for laboratory QC, food & beverage, chemical and pharmaceutical applications.

Product information

• Brand: BIOBASE
• Origin: CHINA
• Lead time: Within 7 days
• Supply capacity: Factory direct

Features

• Cloud service system for connection between instrument and cloud database.
• 7'' TFT LCD touch display with Windows-based software interface for measurement management.
• Interfaces: 2 × USB, RS232, Ethernet; U-disk and SD card support for data export; printer connectivity.
• Measuring prism made of high-hardness sapphire glass for excellent corrosion and scratch resistance; easy to clean.
• Long-life high-brightness LED light source with service life >100,000 hours.
• Peltier temperature control system to maintain stable and accurate sample temperature during measurement.
• Onboard data storage: 4G.

Technical parameters

• Model: BK-R670
• Refractive index measuring range: 1.30000–1.70000 nD
• Measuring error (refractive index): ±0.0001 nD
• Measuring resolution (refractive index): 0.0001 / 0.00001 (optional)
• Brix measuring range: 0–100 %
• Measuring error (Brix): ±0.1 %
• Measuring resolution (Brix): 0.1 % / 0.01 % (optional)
• Temperature control mode: Peltier temperature controller
• Temperature display range: 0–100 ℃
• Temperature control range: 5–80 ℃
• Temperature control accuracy: ±0.02 ℃
• Interfaces: RS232, USB, Ethernet
• Data storage capacity: 4G
• Display: 7'' TFT LCD touch screen
• Power consumption: 45W
• Power supply: AC110V/220V ±10%, 50/60Hz
• External size (W×D×H): 365×300×150 mm
• Packing size (W×D×H): 490×420×300 mm
• Gross weight: 8 kg
