Teaching microscope BFM-100

biologicalachromaticLED

Introduction

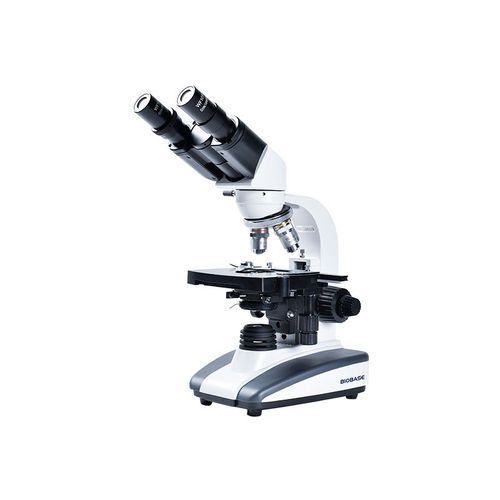

The BM-2CA / BM-2CBA biological microscope by BIOBASE is intended for routine and educational microscopy where reliable optical performance and flexible observation modes are required. Available in binocular (BM-2CA) and trinocular (BM-2CBA) configurations, it supports brightfield observation with standard achromatic objectives and adjustable LED illumination.

Product details

• Brand: BIOBASE
• Product origin: CHINA
• Delivery time: Within 7 days
• Supply capacity: Factory Direct Supply
• Model: BM-2CA, BM-2CBA

Technical Parameters (table)
Model | BM-2CA | BM-2CBA
View Head | Compensation free binocular head, Inclined at 30°, 360° rotatable, Interpupillary 55~75mm | Compensation free trinocular head, Inclined at 30°, 360° rotatable, Interpupillary 55~75mm
Eyepiece | P10X/18mm, P16X/11mm (both models)
Objective (Achromatic) | 4X N.A=0.10 WD=37.50mm; 10X N.A=0.25 WD=7.31mm; 40X N.A=0.65 WD=0.63mm; 100X (Oil) N.A=1.25 WD=0.18mm
Focusing | Coaxial Coarse & Fine Adjustable System, Range 15mm, Fine Division 0.002mm
Stage | BM-2CA: Mechanical Stage 130*130mm, Moving Range 70*30mm, Vernier 0.1mm; BM-2CBA: Mechanical Stage 130*125mm, Moving Range 70*30mm, Vernier 0.1mm
Condenser | Abbe NA1.25 condenser with Iris Diaphragm & Filter
Illumination | LED lamp, brightness adjustable
Filter | Yellow, green
Power Supply | AC85~240V, 50/60Hz
Package Size | BM-2CA: 435*330*235mm; BM-2CBA: 335*215*470mm
Gross Weight | 5.5kg

Characteristics / technical specifications

• Models: BM-2CA (binocular), BM-2CBA (trinocular)
• View head: inclined 30°, 360° rotatable, interpupillary 55–75 mm
• Eyepieces available: P10X/18mm and P16X/11mm
• Achromatic objectives: 4X (N.A.0.10, WD 37.50mm), 10X (N.A.0.25, WD 7.31mm), 40X (N.A.0.65, WD 0.63mm), 100X oil (N.A.1.25, WD 0.18mm)
• Focusing: coaxial coarse & fine, 15 mm range, fine division 0.002 mm
• Stage: mechanical stage with 70×30 mm travel and 0.1 mm vernier (dimensions differ by model)
• Condenser: Abbe N.A.1.25 with iris diaphragm and filter
• Illumination: adjustable LED lamp
• Filters: yellow and green
• Power supply: AC 85–240 V, 50/60 Hz
• Package sizes and gross weight provided per model
