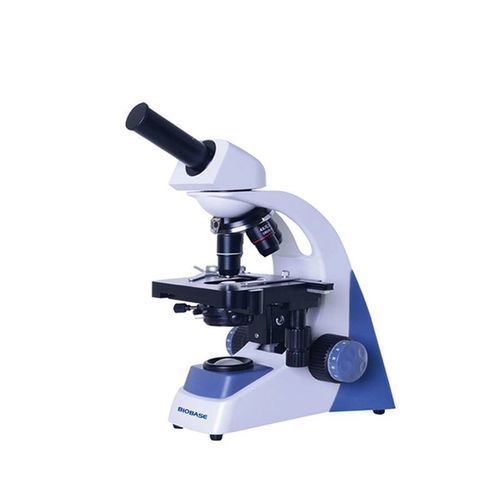

Compound microscope BME series

for teachingbiologicallaboratory

Introduction
Economical biological microscope designed for education and basic laboratory use. This compound microscope provides clear imaging with multiple head configurations for routine observation and teaching applications.

General information

• Brand: BIOBASE
• Product origin: CHINA
• Delivery time: Within 7 days
• Supply capacity: Factory direct supply
• Models: BME-500D, BME-20E, BME-30SM, BME-500V

Technical parameters (summary)
Model: BME-500D | BME-20E | BME-30SM | BME-500V
Viewing head: Monocular head inclined 30°, 360° rotatable | Compensation-free binocular head inclined 30°, 360° rotatable | Compensation-free trinocular head inclined 30°, 360° rotatable | Dual viewing head: one tube inclined 30° and one vertical, 360° rotatable
Objectives: Achromatic 4X, 10X, 40X (spring), 100X (spring, oil) (all models)
Eyepieces: WF10X standard (WF16X or WF25X optional depending on model)
Stage: Double-layer mechanical stage 115×125 mm standard; 138×156 mm optional for BME-20E / BME-30SM
Focusing: Coaxial coarse and fine adjustment; focusing range typically 30 mm (BME-500D/BME-500V/BME-20E) or 20 mm (BME-30SM); focusing interval 0.002 mm
Condenser: Abbe NA=1.25 with iris diaphragm and filter (all models)
Illumination: LED (all models)
Power supply: AC110/220V ±10%, 50/60Hz (model-dependent)
Packing size (W×D×H) and gross weight vary by model: 450×360×240 mm / ~5 kg or 300×230×460 mm / ~4.65 kg
Note: Trinocular models support camera and monitor installation.

Features / technical specifications

• Available configurations: monocular, binocular, trinocular, dual-viewing (depending on model)
• Achromatic objective set: 4X, 10X, 40X (spring), 100X (spring, oil immersion)
• Standard eyepiece WF10X; optional WF16X or WF25X per model
• Double-layer mechanical stage for precise slide movement; optional larger stage for selected models
• High-precision coaxial coarse and fine focusing with 0.002 mm interval
• Abbe condenser NA 1.25 with iris diaphragm and filter
• Energy-efficient LED illumination
• Universal AC power compatibility (110–220 V, 50/60 Hz)
• Trinocular versions allow integration of camera and external display for documentation and teaching
