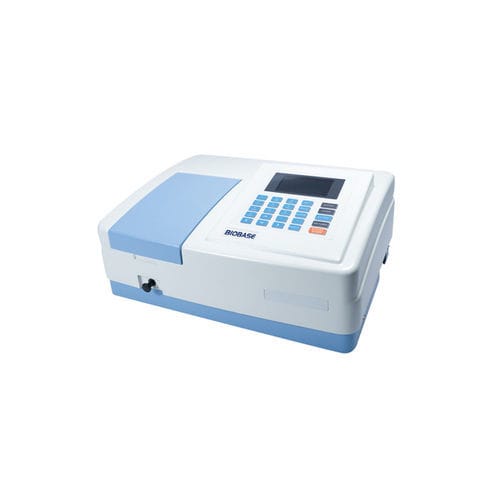

UV-vis spectrometer BK-UV series

UVVISfor research and development

Introduction
The BK-UV series UV-Vis spectrophotometers are analytical instruments for quantitative and qualitative measurements in industrial and research laboratories, environmental monitoring and quality control.

Applications

• Laboratory analysis and R&D
• Environmental monitoring and water analysis
• Quality control in chemical and material production
• Educational and clinical research support (non-diagnostic)

Key features

• Single-beam optical design with 1200 lines/mm grating
• SiO2-coated optical mirror to minimize external contamination
• Automatic wavelength calibration, lamp switching and dark current calibration
• GLP self-check function for wavelength and photometric verification
• Integrated TFT display and USB outputs; PC software available for advanced analysis (PC models)

Basic functions

• Photometry: measurement modes T (transmittance), A (absorbance), C, E
• Quantitation: linear fit and zero-through linear fit; three standard-curve modes (coefficient, standard input, standard read)
• Data handling: store up to 240 group curves, up to 240 data points per curve; dual- and triple-wavelength testing
• Kinetics: time-course scanning and reaction-rate calculation (△A/t)
• Multi-wavelength: measure absorbance and transmittance at up to 8 wavelengths

Technical specifications

• Optical system: single-beam, grating 1200 lines/mm
• Wavelength range: 190–1100 nm (UV models); 320–1100 nm (VIS models)
• Spectral bandwidth: 2 nm or 4 nm depending on model
• Wavelength accuracy: ±0.5 nm; repeatability ≤0.2 nm
• Photometric accuracy: ±0.002 A (0–0.5 Abs), ±0.004 A (0.5–1.0 Abs); ±0.5%T (0–100%T)
• Photometric repeatability: 0.001 Abs (0–0.5 Abs), 0.002 Abs (0.5–1.0 Abs)
• Stray light: ≤0.04%T @360 nm (UV models also measured at 220 nm)
• Stability: ±0.001 A/h @500 nm; baseline flatness ±0.002 A; noise ±0.0005 A
• Detector: silicon photodiode; Light sources: deuterium and tungsten lamps
• Display: 480×272 TFT LCD; Input: membrane keypad
• Output: USB-A ×2 (print/data), USB-B (PC connection)
• Power: AC 85–265 V, 50/60 Hz
• Package size: 620×500×370 mm; Gross weight: approx. 16.5–18 kg

Standard & optional accessories

• Standard: 1 cm glass cuvettes ×4, 1 cm quartz cuvettes ×2 (selected models), 1 cm quadruple cuvette holder ×1, scanning software (PC types)
• Optional: single-slot cuvette holder, long-path holder, micro cuvette, test-tube absorber rack, solid sample holder, deuterium lamp (UV series), tungsten lamp, printer, thermostatic absorption pools, reflection accessories, application or scanning software (model-dependent)

Ordering information

• Brand: BIOBASE
• Origin: China
• Lead time: within 7 days
• Supply: direct factory supply
• Available models: BK-UV1800, BK-UV1800PC, BK-UV1600, BK-UV1600PC, BK-V1800, BK-V1800PC, BK-V1600, BK-V1600PC
