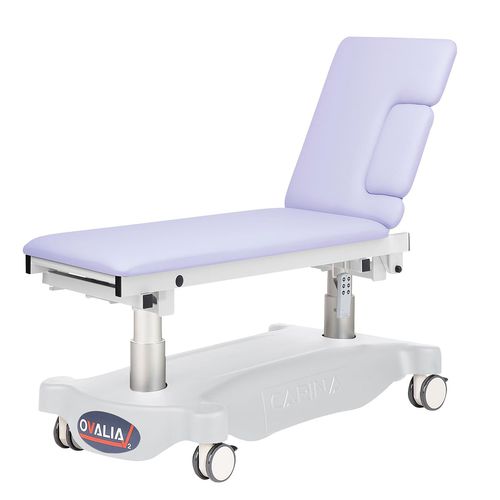

Cardiology examination couch OV2-95-125

for echocardiographyelectricheight-adjustable

Overview
Electric medical examination couch in 2 sections with a usable width of 70 cm. Removable cardiology cut facilitates echocardiography and thoracic examinations. Supplied with stretched upholstery 5 cm thick, fire retardant class M1. Backrest adjustable by electric jack. Electric height adjustment from 48 to 88 cm operated by a multifunction hand remote. Four 125 mm diameter wheels with brakes for mobility. Trendelenburg and Anti-Trendelenburg functions provide emergency positions. Supplied with a paper roll holder on the head side. Standard base colour: light grey (RAL 7035) for the OVALIA V2 range.

Range & Reference
OVALIA V2 range
Ref.: OV2-95-125

Upholstery colours - Standard

• Arno
• Garonne
• Potomac
• Amour
• Mississipi
• St Laurent
• Rhône
• Missouri
• Seine
• Amazone

Upholstery colours - Optional

• Abysse
• Cendre
• Origan
• Géranium
• Réglisse
• Prune
• Perle
• Ficelle
• Terre
• Béton
• Châtaigne
• Chocolat
• Pensée
• Pétrole
• Turquoise
• Granny
• Absinthe
• Ananas
• Orange
• Fuschia
• Tomate

Base colours - Standard

• RAL 7035

Base colours - Optional (examples)

• RAL 9003
• RAL 1013
• RAL 1015
• RAL 6019
• RAL 6033
• RAL 6000
• RAL 5017
• RAL 5002
• RAL 5000
• RAL 7016
• RAL 9005
• RAL 1018
• RAL 3020
• RAL 3003

Accessories (standard)

• Paper roll holder on the head side
• Wheels diameter 125 mm with brakes (4 wheels)
• Removable part for cardiology exams (cardiology cut)

Product features
Height: electrically adjustable from 48 to 88 cm
Type of control: multifunction hand remote
Width: 70 cm
Upholstery thickness: 5 cm
Coating: Fire retardant M1 class
Load capacity: 200 kg
Number of sections: 2 sections
Mobility: 4 wheels with brakes, diameter 125 mm
Emergency positions: Trendelenburg and Anti-Trendelenburg functions
Base colour (standard): light grey RAL 7035

Technical specifications

• Series: OVALIA V2
• Reference: OV2-95-125
• Number of sections: 2
• Overall width: 70 cm
• Height adjustment: electrically adjustable from 48 to 88 cm
• Backrest: adjustable by electric jack
• Upholstery thickness: 5 cm
• Upholstery class: Fire retardant M1
• Load capacity: 200 kg
• Mobility: 4 wheels with brakes, diameter 125 mm
• Emergency positions: Trendelenburg and Anti-Trendelenburg
• Standard accessories: paper roll holder (head side), removable cardiology cut, wheels diam. 125 mm with brakes
• Base colour (standard): light grey RAL 7035 (other RAL options available)
• Compliance/marks: CE marking indicated
• Manufacture: French made
