Cardiology examination couch OV2-98-125

for echocardiographyadultelectric

Overview

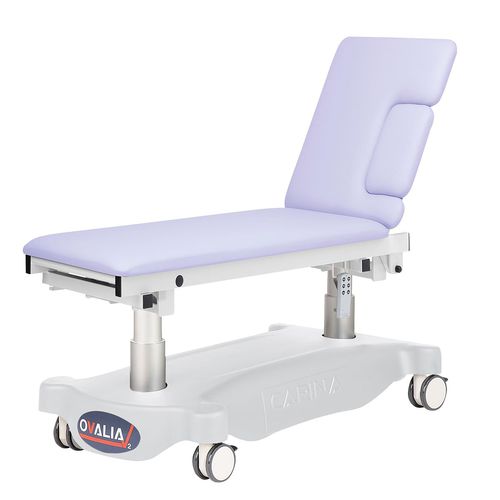

Discover this electric cardiology examination couch in 2 sections with a width of 80 cm. It features a removable cardiology cutout to facilitate echocardiography and thoracic examinations. The upholstery is stretched, 5 cm thick, with a fire-retardant M1 class coating. The backrest is adjusted by an electric jack. Height is electrically adjustable from 48 to 88 cm via a multifunction hand remote. Mobility is ensured by 4 wheels with brakes (Ø 125 mm). Trendelenburg and anti-Trendelenburg positions are available. Supplied with a paper roll holder on the head side. All exam couches from the OVALIA V2 range are delivered with a shaped base in light grey (RAL 7035).

Range and reference
OVALIA V2 range
Ref.: OV2-98-125

Upholstery colours
Standard colours

• Arno
• Garonne
• Potomac
• Amour
• Mississipi
• St Laurent
• Rhône
• Missouri
• Seine
• Amazone

Optional colours

• Abysse
• Cendre
• Origan
• Géranium
• Réglisse
• Prune
• Perle
• Ficelle
• Terre
• Béton
• Châtaigne
• Chocolat
• Pensée
• Pétrole
• Turquoise
• Granny
• Absinthe
• Ananas
• Orange
• Fuschia
• Tomate

Base colours
Standard base colour

• RAL 7035 (light grey)

Optional base colours (RAL)

• RAL 9003
• RAL 1013
• RAL 1015
• RAL 6019
• RAL 6033
• RAL 6000
• RAL 5017
• RAL 5002
• RAL 5000
• RAL 7016
• RAL 9005
• RAL 1018
• RAL 3020
• RAL 3003

Product features

• Electric height adjustment: 48–88 cm
• Control: Multifunction hand remote
• Width: 80 cm
• Number of sections: 2
• Upholstery thickness: 5 cm
• Upholstery coating: Fire retardant M1 class
• Backrest adjustment: Electric jack
• Load capacity: 200 kg
• Mobility: 4 wheels Ø 125 mm with brakes (optional 150 mm wheels available)
• Trendelenburg / Anti-Trendelenburg positions: Available
• Standard accessories: Paper roll holder (head side), wheels Ø 125 mm with brakes, removable cardiology part

Related accessories (listed on the product page)

• Plastic protection cover for all couches - ACC 514-UNIVERSE
• Pair of stainless steel rails 25x10 length 1500 mm for OVALIA 2 sections - ACC OVALIA02
• Pair of clamps for couches width 80 cm - ACC 76-OVALIA-80
• Pair of stainless steel stirrups Ø 14 mm, without clamp - ACC 105
• Blood test splint in colour without clamp - ACC 110
• Polyurethane blood test splint without clamp - ACC 110POLY
• Pair of legrests on knee system black polyurethane Ø 14 mm, without clamp - ACC 964
• Stainless steel infusion stand Ø 16 mm, 2 plastic hooks - ACC 32012
• Stainless steel infusion stand Ø 16 mm, 2 stainless steel hooks - ACC 32014
• Half moon head rest width 80 cm fire retardant M1 class - ACC 54003
• Pair of retractable safety side rails for couches width 80 cm - ACC BARRILITOV08
• Battery, capacity 20 cycles - ACC BATTERIE01
• Base colour in a different colour - ACC-CAPOT
• 4 skids instead of wheels - ACC-FIXE
• OVALIA / FEMINA pedal - ACC-OVALIA03
• Pedal for OVALIA + connecting cable for double control - ACC-OVALIA05
• Ergonomic head rest - ACC TETERGO
• 4 wheels Ø 150 mm with central brake system - RL-150

Technical specifications

• Model range: OVALIA V2
• Reference: OV2-98-125
• Type: Electric examination couch, 2 sections
• Width: 80 cm
• Height adjustment: Electrically adjustable 48–88 cm
• Backrest: Adjustable by electric jack
• Control: Multifunction hand remote
• Upholstery: Stretched, 5 cm thick, fire retardant M1 class
• Load capacity: 200 kg
• Standard accessories: Paper roll holder (head side), wheels Ø 125 mm with brakes, removable cardiology part
• Base: Shaped base RAL 7035 (light grey) standard; optional RAL colours available
• Mobility: 4 wheels Ø 125 mm with brakes (optional Ø 150 mm, RL-150)
• Trendelenburg / Anti-Trendelenburg: Available
• Origin: Made in France
