Cardiology examination couch OV2-99-125

for echocardiographyadultelectric

Overview

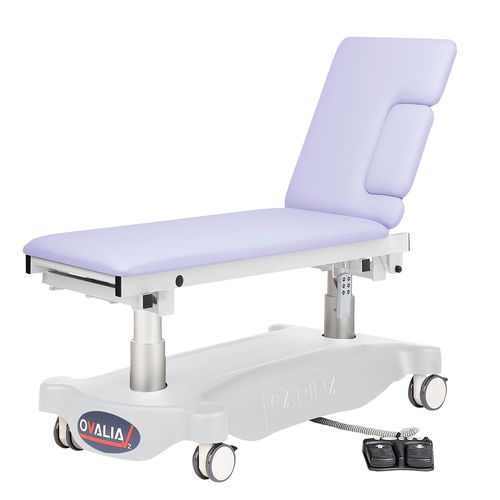

Electric cardiology examination couch in 2 sections with an overall width of 80 cm. Fitted with a removable cardiology cut to facilitate echocardiography and rib-cage examinations. Upholstery is tensioned, 5 cm thick, fire retardant class M1. Backrest adjustment by electric jack and electric height adjustment from 48 to 88 cm controlled via a multifunction pedal. Fitted with four castors (Ø 125 mm) with brakes. Emergency positions reachable with Trendelenburg and Anti-Trendelenburg functions. Supplied with a paper roll holder on the head side. Base delivered shaped in light grey (RAL 7035) as standard.

Range and reference
OVALIA V2 range
Reference: OV2-99-125

Standard accessories

• Paper roll holder (head side)
• Castors Ø 125 mm with brakes
• Removable cardiology section (cardiology cut)

Upholstery colours — Standard

• Arno
• Garonne
• Potomac
• Amour
• Mississipi
• St Laurent
• Rhône
• Missouri
• Seine
• Amazone

Upholstery colours — Optional

• Abysse
• Cendre
• Origan
• Géranium
• Réglisse
• Prune
• Perle
• Ficelle
• Terre
• Béton
• Châtaigne
• Chocolat
• Pensée
• Pétrole
• Turquoise
• Granny
• Absinthe
• Ananas
• Orange
• Fuschia
• Tomate

Base colours
Standard: RAL 7035
Optional: RAL 9003, RAL 1013, RAL 1015, RAL 6019, RAL 6033, RAL 6000, RAL 5017, RAL 5002, RAL 5000, RAL 7016, RAL 9005, RAL 1018, RAL 3020, RAL 3003

Product Features (table)
Height: Electric adjustment from 48 to 88 cm
Control: Multifunction pedal (electric)
Width: 80 cm
Upholstery thickness: 5 cm
Cover: Fire retardant class M1
Load capacity: 200 kg
Standard accessories: Paper roll holder (head side), castors Ø125 mm with brakes, removable cardiology section
Number of sections: 2

Technical specifications

• Reference: OV2-99-125
• Series: OVALIA V2
• Type: Electric cardiology examination couch, 2 sections
• Overall width: 80 cm
• Height adjustment: Electric, 48–88 cm
• Backrest adjustment: Electric jack
• Control: Multifunction pedal (electric)
• Upholstery thickness: 5 cm
• Upholstery fire rating: M1
• Removable cardiology cut for echocardiography and rib-cage exams
• Castors: 4 castors with brakes, Ø 125 mm
• Emergency positions: Trendelenburg and Anti-Trendelenburg
• Base finish: Shaped base in light grey (RAL 7035) standard; optional RAL colours available
• Load capacity: 200 kg
• Number of sections: 2

Associated accessories (examples)

• Transparent plastic protection for couches – ACC 514-UNIVERSE
• Pair stainless rails 25x10 L 150 cm for OVALIA 2 sections – ACC OVALIA02
• Set of clamps for OV2 width 80 cm – ACC 76-OVALIA-80
• Standard stainless stirrups Ø 14 mm (without clamp) – ACC 105
• Blood collection gutter with fittings (without clamp) – ACC 110
• Set of black leg rests – ACC 964
• Half-moon headrest 80 cm, fire retardant M1 – ACC 54003
• Pair of retractable side rails for 80 cm couches – ACC BARRILITOV08
• Battery with 20-cycle autonomy – ACC BATTERIE01
• Base paint (other than standard grey) – ACC-CAPOT
• 4 fixed glides – ACC-FIXE
• OVALIA / FEMINA pedal – ACC-OVALIA03
• Manual remote control OVALIA + Y-cord (dual control) – ACC-OVALIA06
• Ergonomic removable headrest – ACC TETERGO

Remarks
Supplied as standard on glides; castors available as standard equipment. CE marked. French manufacturing available.
