Cardiology examination couch OV2-96-125

adultelectricheight-adjustable

Overview

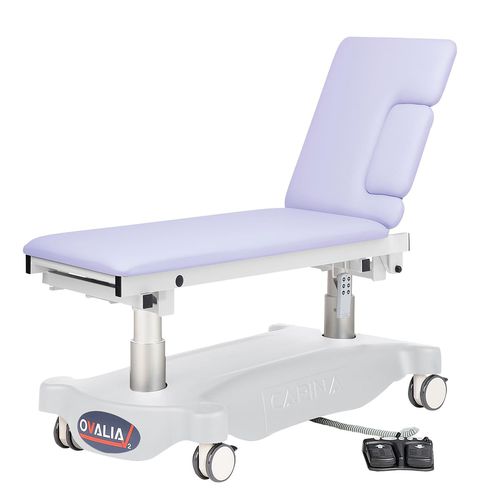

Electric cardiology examination couch in 2 sections with a width of 70 cm. Features a removable cardiology cut to facilitate echocardiography and thoracic examinations. Upholstery: stretched 5 cm thickness, fire retardant class M1. Backrest adjustable by electric jack. Electric height adjustment from 48 to 88 cm via multifunction pedal. Supplied with 4 wheels with brakes (125 mm diameter) for mobility. Emergency position available with Trendelenburg and Anti-Trendelenburg functions. Paper roll holder supplied behind the backrest. OV2 range delivered with a shaped base in light grey (RAL 7035).

Range & Reference
OVALIA V2 range
Ref. : OV2-96-125

Note
Delivered on skids as standard; wheels available as option (ACC125 or ACC150).

Upholstery colours

• Standard colours: Arno, Garonne, Potomac, Amour, Mississipi, St Laurent, Rhône, Missouri, Seine, Amazone
• Optional colours: Abysse, Cendre, Origan, Géranium, Réglisse, Prune, Perle, Ficelle, Terre, Béton, Châtaigne, Chocolat, Pensée, Pétrole, Turquoise, Granny, Absinthe, Ananas, Orange, Fuschia, Tomate

Base colours

• Standard: RAL 7035
• Optional: RAL 9003, RAL 1013, RAL 1015, RAL 6019, RAL 6033, RAL 6000, RAL 5017, RAL 5002, RAL 5000, RAL 7016, RAL 9005, RAL 1018, RAL 3020, RAL 3003

Included standard accessories

• Paper roll holder on head side
• Wheels diameter 125 mm with brakes
• Removable cardiology section

Associated accessories (examples)

• Transparent plastic protection for all couches — ACC 514-UNIVERSE
• Pair of stainless steel rails 25x10 length 150 cm for OVALIA 2-section — ACC OVALIA02
• Set of clamps for OV2 couches width 70 cm — ACC 76-OVALIA-70
• Standard stainless stirrups Ø 14 mm, without clamp — ACC 105
• Blood draw gutter with fittings, without clamp — ACC 110
• Polyurethane blood draw gutter with fittings, without clamp — ACC 110POLY
• Pair of black leg rests on ball joint, polyurethane foam — ACC 964
• IV pole Ø 16 mm, 2 plastic hooks — ACC 32012
• IV pole stainless Ø 16 mm, 2 stainless hooks — ACC 32014
• Half-moon headrest width 70 cm, non-flammable M1 cover — ACC 54002
• Pair of retractable rails for 70 cm width couches — ACC BARRILITOV02
• Battery with autonomy of 20 cycles — ACC BATTERIE01
• Custom base painting (other than standard grey) — ACC-CAPOT
• 4 fixed skids — ACC-FIXE
• OVALIA / FEMINA pedal — ACC-OVALIA03
• Manual remote OVALIA + Y-cable (double control) — ACC-OVALIA06
• Ergonomic removable headrest — ACC TETERGO
• 4 wheels diameter 150 mm with centralized braking — RL-150
• Prelude cover for leg rest (ACC964) — SLFEMIREPOSE

Documents
Technical data sheet available (Fiche technique OV2-96-125).

Product Features (table)
Height (cm): Electrically adjustable from 48 to 88 cm
Type of control: Multifunction pedal
Width: 70 cm
Upholstery thickness: 5 cm
Coating: Fire retardant class M1
Load capacity: 200 kg
Accessories included as standard: Paper roll holder on head side, wheels Ø 125 mm with brakes, removable cardiology section
Number of sections: 2

Technical specifications

• Range: OVALIA V2
• Reference: OV2-96-125
• Type: Electric cardiology examination couch, 2 sections
• Width: 70 cm
• Height adjustment: Electrically adjustable from 48 to 88 cm
• Backrest: Electrically adjustable by jack
• Control: Multifunction pedal
• Upholstery thickness: 5 cm (stretched upholstery)
• Upholstery fire class: M1 (fire retardant)
• Load capacity: 200 kg
• Wheels: 4 wheels with brakes, diameter 125 mm
• Positions: Trendelenburg and Anti-Trendelenburg (emergency position available)
• Standard accessories: Paper roll holder on head side, removable cardiology section
• Base: Shaped base delivered in light grey (RAL 7035) — optional base colours available
• Available upholstery colours: standard and optional palettes as listed above
• Number of sections: 2
