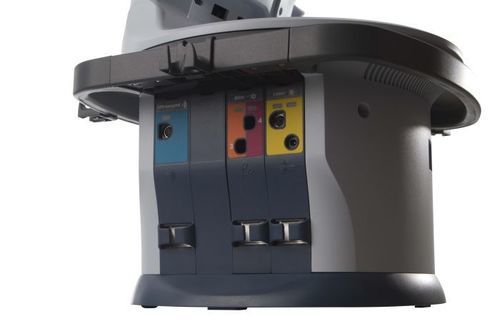

On-platform ultrasound system Intelect® Neo

for multipurpose ultrasound imagingB/W

Overview
An ultrasound module designed for the Intelect® Neo Therapy System. The module fully integrates with Neo’s advanced features such as the Clinical Protocol Setup (CPS) and works with the electrotherapy module(s) to enable combined therapy protocols for a variety of clinical indications.

Features & Benefits

• 1 MHz and 3 MHz operating frequencies
• Pulsed and continuous output modes (10%, 20%, 50% and 100%)
• Variable pulse repetition options: 16 Hz, 48 Hz or 100 Hz
• Predefined clinical indications recommending appropriate application areas and parameter sets
• Ergonomically designed transducers available in Small, Medium and Large sizes
• Interchangeable transducers enabled by Electronic Signature™ on each probe
• Transducer warming and contact monitoring with visual and audible feedback
• 3-year warranty on the module (accessories 1 year)

Standard Accessories

• Intelect® Neo Modules User Manual on CD
• Intelect® Neo Ultrasound Module User Manual

Technical Specifications

• SKU: 70002-INT
• Main Power: 100-240 VAC - 1.0 A, 50/60 Hz
• Electrical Safety Class: Class 1, Type B
• Safety Tests: IEC 60601-1, IEC 60601-1-2, IEC 60601-2-5
• Dimensions (module only): 28 x 16 x 3 cm
• Weight (module only): 0.5 kg
