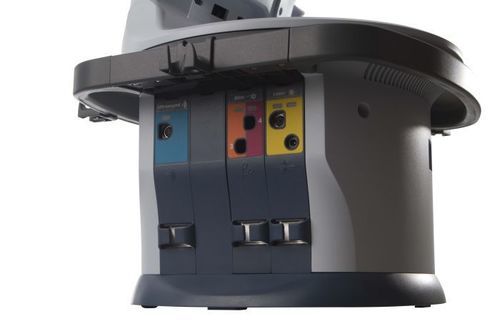

2-channel electromyograph Intelect® Neo

for physiotherapywith neurostimulationbiofeedback

Overview
The sEMG module for the Intelect® Neo integrates surface EMG biofeedback with two-channel electrotherapy and enables stimulation to be triggered by sEMG outputs. It is designed for clinical use and integrates with the Neo Clinical Protocol Setup (CPS) system for streamlined treatment workflows.

Features & Benefits

• Over 30 clinical waveforms for diverse treatment protocols
• Operates alongside up to 4 independent electrotherapy channels when combined with the optional channel 3/4 module
• Comprehensive electrode placement guide with detailed descriptions and imagery to support accurate application
• Enhanced sEMG display modes: bar and linear graphs for clear muscle activity visualization
• High-sensitivity biofeedback: detection threshold below 3 microvolts for precise muscle activity monitoring
• Enables targeted muscle isolation to support re-education and functional training

Standard Accessories

• Intelect® Neo Modules User Manual on CD
• Intelect® Neo Stim 1/2 Module User Manual
• Stim Ch 1/2 Leadwire Kit

Technical Specifications

• Main Power: 100 - 240 V AC - 1.0 A, 50/60 Hz
• Electrical Safety Class: Class 1, Type BF
• Safety Tests: IEC 60601-1, IEC 60601-1-2
• Dimensions (module only): 28 x 16 x 3 cm
• Weight (module only): 0.5 kg
