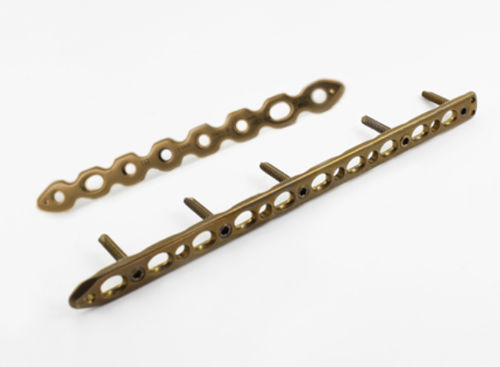

Radius compression plate 5.0ChLP

radius compression plate
radius compression plate
Add to favorites
Compare this product


radius, humerus, tibia
Part of bone


Anatomy tibiashaft humerusshaft radiusshaft Product plate System 5.0ChLP Narrow compression limited contact plate [3.3157] is used for the treatment of the fractures of long bones such as the humerus, fi bu-la, the bone of the forearm. The plate is a part of the ChLP locking plates system developed by ChM company. The presented range of implants is made of titanium and its alloys in accordance with ISO 5832 standard. Quality Management Systems, ISO 9001:2000, EN ISO 13485:2003 and the compliance with the requirements of Directive 93/42/EEC guarantee high quality of the offered implants.The system included:• implants (narrow compression plate, locking screws and standard cortical screws),• instrument set used for plates implantation,• surgical technique.The plate is intended for the treatment of:• comminuted fractures of the long bones,• long bones fractures,• mal-, and non-unions.Contraindications:• infections,• growing children.Plate selectionA wide range of dimensions of the locking plates system allows plate proper selection. It is recommended to use longer locking plates. The advantage of longer plates over the shorter ones is more favourable distribution of forces.Plate shapingShaping of the locking plates in percutaneous method that uses targeters is not allowed. Plate shaping prevents its proper functio-ning with the targeter.
