Hospital lighting CL104

for dental clinicsaesthetic medicinefor veterinary clinics

Overview

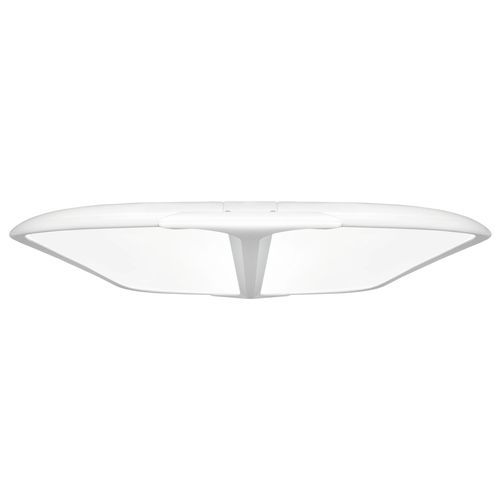

Clair CL104 is a large LED ceiling luminaire designed for clinical environments to deliver high illumination and accurate colour rendering. The luminaire features a hygienic sealed aluminium upper housing and advanced LED optics to provide optimal task lighting with minimal radiant heat. An optional dynamic daylight function allows colour temperature adjustment to mimic natural daylight cycles. Suitable for hospitals, dental and veterinary clinics, and aesthetic practices.

Key performance and comfort features

• 3000 lux at 1.2 m: Bright illumination for visually demanding clinical tasks.
• Shadow-free light: Even distribution across the work surface via microprism diffusion.
• Dynamic daylight: AUTO mode gradually shifts intensity and colour temperature to simulate natural daylight.
• Minimal glare: Microprisms produce soft, comfortable illumination for patients and clinicians.

Designed for clinical environments

• Hygienic sealed construction: Upper housing in aluminium; fully sealed luminaire prevents dust ingress and simplifies cleaning.
• Control: Remote control with dimming and two programmable quick-access buttons; with dynamic lighting option the colour temperature can be adjusted from the remote.
• Clair E variant: Economical version with a simple on/off pull-cord switch for basic installations.

Lighting quality and efficiency
The light panel and integrated microprisms diffuse and distribute LED sources to deliver uniform, shadow-free illumination without visible point sources. Optimised reflectors and diffusing panels maximise light output while keeping energy consumption low. Aluminium cooling construction and advanced LED technology ensure minimal heat emission in the working area.

Indirect lighting and room effect
Upward indirect light softly reflects from the ceiling and vertical surfaces to create a brighter, more balanced room appearance, improving patient comfort and visual ergonomics. The combination of indirect and direct task lighting effectively illuminates rooms up to approximately 15 m².

Technical specifications

• Product: CL104
• Light source: LED 104 – 216 W
• Illuminance: 3000 lux / 1.2 m
• Colour temperature: 3000 – 5700 K, CRI 94
• Dimensions: 1530 x 670 x 59 mm
• Weight: 16.3 kg
• Rating: IP20
• Included: Dimmer with remote control
• Options: Indirect lighting; Dynamic lighting (AUTO)
