Dental clinic lighting BR160

laboratoryaesthetic medicinefor veterinary clinics

Product overview

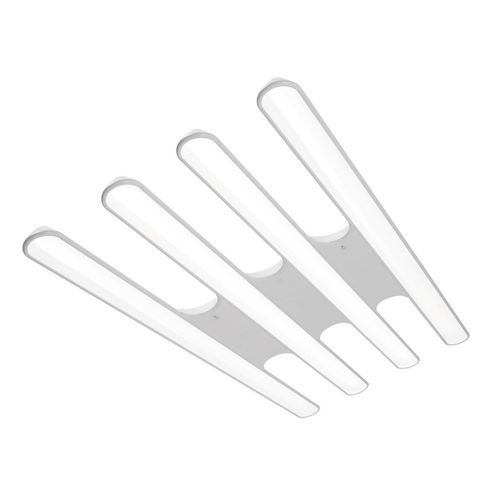

Brite Tetron is the largest luminaire in the Brite family, developed to illuminate larger workspaces and treatment rooms. It delivers a large illuminated surface with powerful, colour-accurate, shadow-free and glare-free light that creates optimal conditions for accurate colour perception and visual clarity.

Key benefits

• Powerful illumination: 4550 lux (at 1.2 m)
• Largest in the Brite series — developed for larger treatment rooms and workspaces
• Shadow-free lighting from four light sources providing even light distribution
• High colour rendering: CRI 94 (natural colour rendering)
• Low energy consumption thanks to integrated LED modules and optimized optics
• Maintenance-free, fully enclosed construction preventing dirt and bacteria ingress
• Minimal heat emission due to cooling aluminium construction

Design and operation
Parallel light sources direct light to the centre, blending to a soft, shadow-free illumination. The product offers dimming via included remote control and two programmable quick-access buttons for typical tasks (for example X-ray viewing or composite work). Estimated lifespan approximately 50,000 operating hours. The light panel together with integrated microprisms diffuses light and eliminates glare for improved ergonomics and patient comfort.

Applications

• Healthcare and examination rooms
• Dental clinics
• Veterinary clinics and animal care
• Laboratories and medical/dental technology environments
• Beauty clinics
• Offices and other workplaces with high visual demands

Additional product details
The construction is robust aluminium, with integrated high-quality LED modules and advanced combination of reflectors, diffusing panels and microprisms to maximize light output and even distribution while reducing energy use and heat emission.

Technical specifications

• Product: BR160
• Light source: LED 212 W
• Illuminance: 4550 lux / 1.2 m
• Colour temperature: 5700 K, CRI 94
• Dimensions: 1200 x 550 x 45 mm
• Weight: 11 kg
• Rating: IP20 / IP21
• Options: Dimmer with remote control
