Dental clinic lighting C209

laboratoryaesthetic medicinefor veterinary clinics

Overview

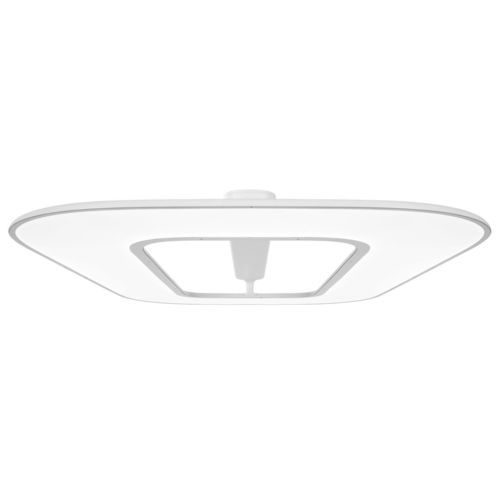

Cloud is a ceiling-mounted LED luminaire designed for clinical and laboratory environments. It provides uniform, shadow-free illumination across large work surfaces to support precise examination and procedural tasks. Optional aesthetic and dynamic lighting effects are available, including an LED centre display and automatic daylight simulation.

Key highlights

• 4500 lux — Powerful task lighting
• CRI 94 — Natural colour rendering
• 15 mm — Ultra-slim profile
• Dynamic lighting — Daylight simulation and adjustable colour temperature

Description
Cloud is intended for use in healthcare settings such as dental clinics, veterinary practices, medical and dental laboratories, and beauty or animal-care facilities that require wide, consistent illumination. At 1282 × 850 mm, it covers larger examination and procedure areas. The luminaire is machined from a single piece of aluminium for hygienic, easy-to-clean construction and efficient thermal performance. A structured optical panel with microprisms and advanced light-distribution technology ensures even, shadow-free illumination while minimizing glare and contrast. Integrated dimming and indirect upward light reduce eye strain and enable zoning for different tasks.

Features

• Shadow-free lighting — even distribution across the entire work area
• Dynamic daylight — automatic or adjustable transitions between warm and cool light
• Indirect lighting — reduces contrast and visual fatigue
• Dimming function — adjustable light levels; dimmer included with remote control
• Optional colour panel with special effects to create calming atmospheres (e.g. drifting clouds or full-spectrum colour displays)
• Optional TV/monitor mount for patient distraction or information display (note: colour panel and monitor mount cannot be combined)
• Ultra-slim profile — 15 mm height
• One-piece aluminium construction — hygienic and easy to clean
• 1023 high-efficiency LEDs from Cree — up to 165 lm/W at CRI >94
• High-efficiency reflectors — reflect >98% of the light
• Large structured optical surface — ensures uniform intensity and precise colour mixing

Applications

• Healthcare
• Dentistry
• Beauty care
• Animal care
• Veterinary practices
• Laboratories
• Medical and dental technology

Specifications

• Product: C209
• Light source: LED 209 – 290 W
• Illuminance: 4500 lux / 1.2 m
• Colour temperature: 3000 – 5700 K, CRI 94
• Dimensions: 1282 × 850 × 15 mm
• Weight: 20 kg
• Rating: IP20
• Included: Dimmer with remote control
• Options: Indirect lighting; Dynamic lighting (automatic); Colour panel*; Monitor mount* (*The colour panel and monitor mount cannot be combined)
