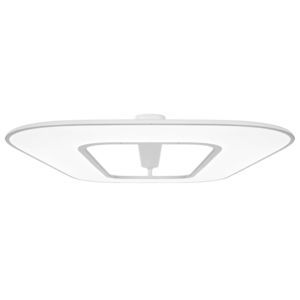

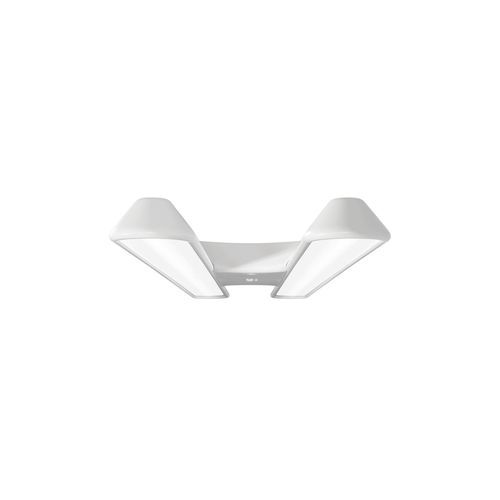

Dental clinic lighting BR80

laboratoryfor dental laboratoriesaesthetic medicine

Overview
A clear mind delivers perfect results. Beneath a softly designed LED luminaire, light flows across the workspace to create room for creativity and precision. The luminaire is developed with a single focus: light quality. Brite provides glare-free, shadow-free illumination optimized for clinical and visually demanding environments.

Key benefits

• Shadow-free light: even light distribution for greater precision
• Glare-free task lighting: integrated microprisms reduce glare and improve visual comfort
• Long service life: estimated lifespan of approximately 50,000 operating hours
• Low energy consumption: optimized LED modules, reflectors and diffusing panels
• Minimal heat emission: cooling aluminium construction reduces heat radiation

Designed for

• Task lighting above workstations and treatment chairs
• Dental clinics and dental laboratories
• Veterinary practices and animal care facilities
• Laboratories and medical or technical labs
• Beauty clinics and treatment rooms
• Offices and clinical environments where accurate colour rendering is essential

Product features & design
Dual parallel light sources direct light toward the centre where it blends into a soft, shadow-free illumination. Hundreds of small LEDs work with integrated microprisms to distribute light evenly across the workspace, minimising shadows and improving ergonomics and work quality. Optional remote control provides dimming functionality and two programmable quick-access buttons for task-specific presets.

Technical information (excerpt)
Product family: Brite series. Light quality emphasis: glare-free and shadow-free illumination with microprisms for visual comfort. Construction: enclosed design with robust aluminium housing to reduce contamination and to shield electrical/magnetic fields.

Technical specifications

• Product model: BR80
• Light source: LED 106 W
• Illuminance: 9500 lux @ 0.6 m
• Colour temperature: 5700 K, CRI 94
• Lifespan: approx. 50,000 operating hours
• Dimensions: 1200 x 235 x 45 mm
• Weight: 5 kg
• Rating: IP20 / IP21
• Options: Dimmer with remote control; Floor stand
