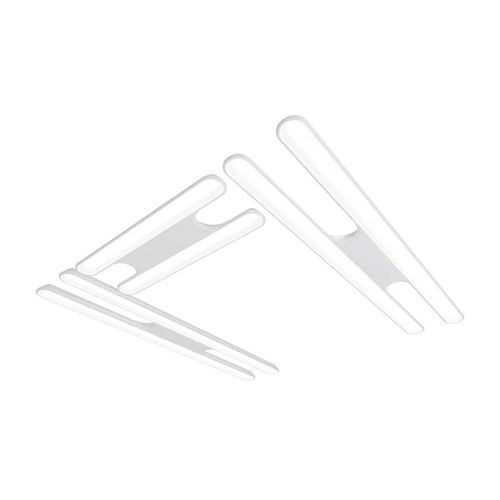

Dental examination lamp BR200

clinicalLEDceiling-mounted

Overview
A clinical LED luminaire designed to deliver uniform, shadow-free illumination across large workspaces. Its low-glare, high‑quality light preserves visual comfort and reduces fatigue, supporting precision tasks in healthcare, dental and laboratory environments.

Key features

• Surrounding light distribution — uniform illumination across larger work area.
• Shadow-free precision — even, accurate lighting across the entire workspace.
• Minimal glare — soft light that reduces eye strain.
• High colour rendering — CRI 94 for natural and accurate colour rendering.
• Estimated lifespan of approximately 50,000 operating hours.
• Optional remote control offering dimming functionality and two programmable quick-access buttons (e.g., for X-ray viewing and composite work).

Design and performance

• Combination of multiple Brite luminaires creating a large illuminated span (1100 mm) suitable to illuminate large work areas and to complement ceiling-mounted surgical lighting.
• Dual parallel light sources direct the light toward the centre, blending to create soft, shadow-free illumination while maintaining shadow-free performance when dimmed.
• Hundreds of small LEDs with integrated microprisms distribute light evenly to minimise shadows.
• Diffusing light panel plus microprisms eliminate glare, improving ergonomics and comfort for patients and users.
• Robust aluminium construction that is fully enclosed to prevent dirt and bacteria ingress, making the luminaire virtually maintenance-free; the construction also shields electrical, magnetic, and alternating fields.
• Optimised for low energy consumption and minimal heat emission through advanced reflectors, diffusing panels, microprisms, and cooling aluminium construction.

Typical applications

• Healthcare
• Dentistry
• Animal care / Veterinary
• Laboratories
• Medical and dental technology
• Beauty clinics
• Offices

Included and options

• Included: Dimmer with remote control.
• Options: Flat-screen monitor mount.

Technical specifications

• Product: BR200
• Light source: LED 265 W
• Illuminance: 4000 lux / 1.2 m
• Colour temperature: 5700 K, CRI 94
• Dimensions: 1200 x 1110 x 45 mm
• Weight: 13 kg
• Rating: IP20 / IP21
• Included: Dimmer with remote control
• Options: Flat-screen monitor mount
• Estimated lifespan: approx. 50,000 operating hours
